点击放大查看

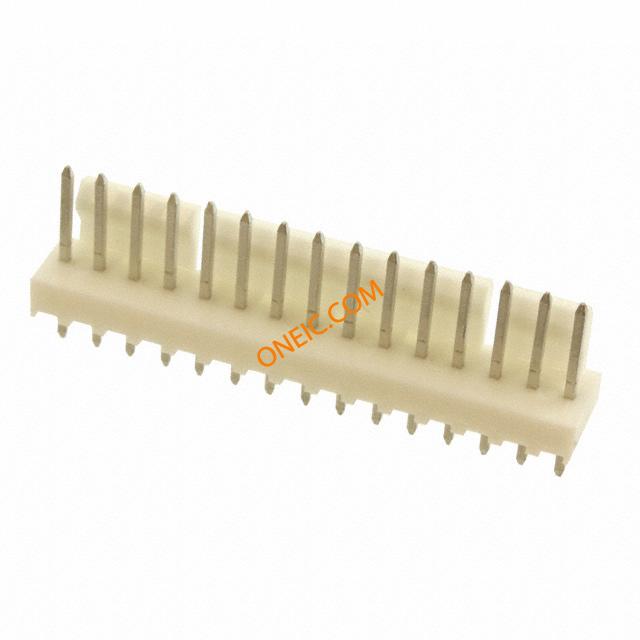

22-23-2151
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 15 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 15POS .100 VERT TIN Headers & Wire Housings 15C HEADER Conn Wire to Board HDR 15 POS 2.54mm Solder ST Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022232151 A-6373-15A102 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4 A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 15 |
| 位数 | 15 | 接触长度 - 配合 | 0.295" (7.49mm) |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 6373 | 产品子类型 | Headers |
| 加载位置数 | All | ||
