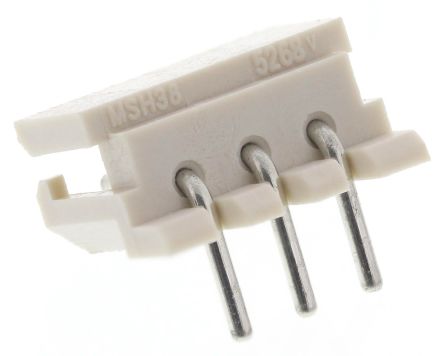

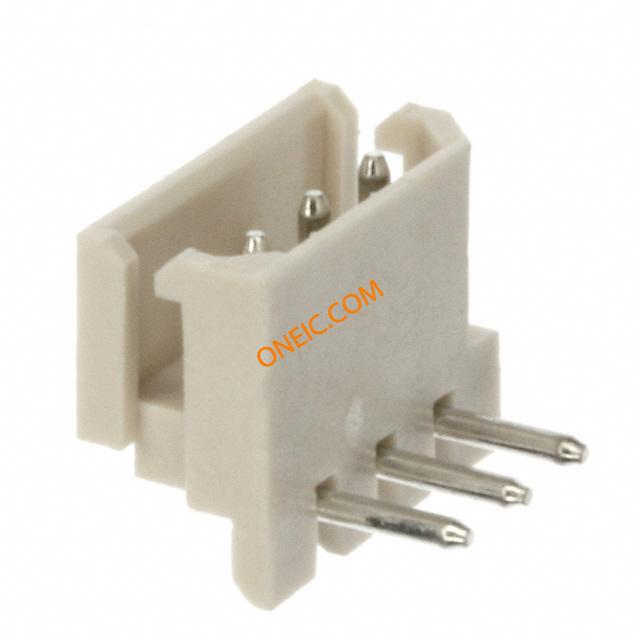

22-05-7035
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 3 POS 2.5mm Solder RA Thru-Hole Bag CONN HEADER 3POS 2.5MM R/A TIN Molex 5268 Series 2.5mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 3 CKT 2.5MM R/A HDR Molex SPOX 系列 2.5mm节距 3路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 |
| 分类 |
商业参数
| 商标名 | SPOX | 零件号别名 | 0022057035 5268-03A |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 20000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V ac/dc | 最大额定电流 | 3 A |
机械参数
| 颜色 | Natural | 间距 | 2.5 mm |
| 包装方式 | Bulk | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Copper | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 3 | 位数 | 3 |
| 接触长度 - 配合 | 0.138" (3.50mm) | 接触镀层厚度 | 160µin (4.06µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 5268 | 覆盖范围 | 覆盖 |
| 产品子类型 | Headers | 基础产品编号 | 5268 |
| 加载位置数 | All | ||
