14-56-2132
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector F 13 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 13POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 13Ckt |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0014562132 A-70400-0677 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 480 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24 AWG | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 13 |
| 位数 | 13 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 系列 | 70400 | 产品特性 | Closed End |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0050650213
molex
Conn Housing F 13 POS 2.54mm Crimp ST Bag SL PMC WTOW SR MODBRNCH 13POS

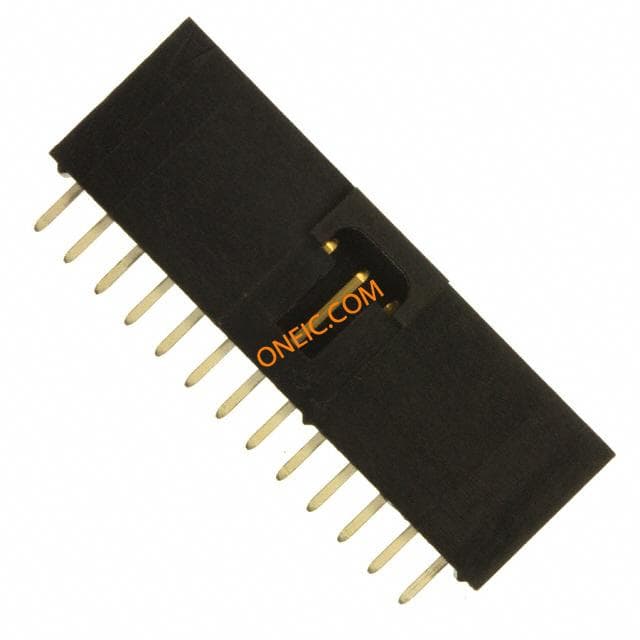

0705430012
molex
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 13POS .100 VERT GOLD
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0621000700
molex
Connector Accessories Tool IDT Discrete Handtool Module For SL TOOL HAND DIESET MODULE

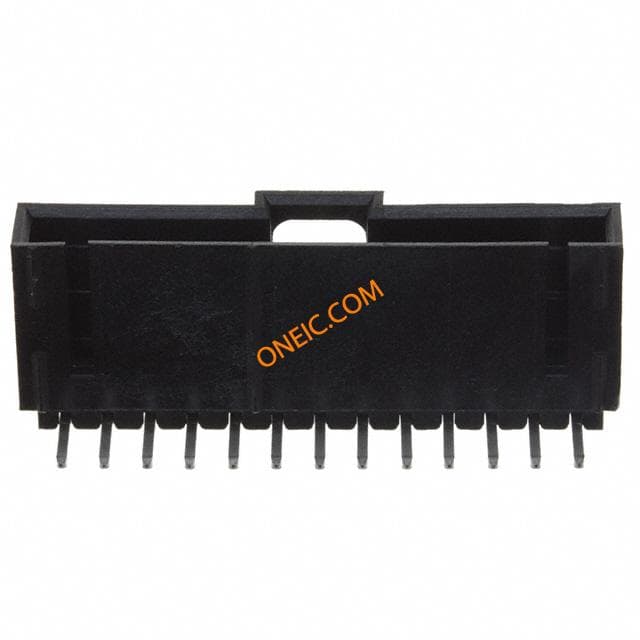

0705530012
