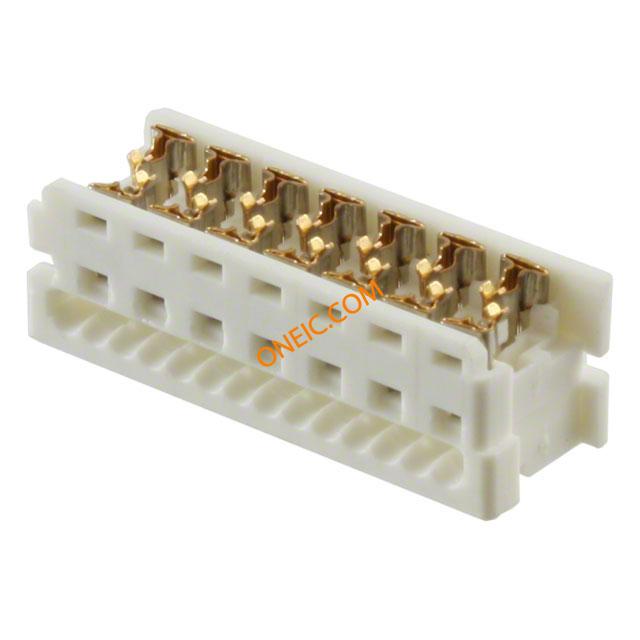

0903273372
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag CONN RCPT IDT 14POS 1.27MM GOLD |
| 分类 |
商业参数
| 其他名称 | WM6821CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 1.2/Contact |
| 最小输入电压 | 250VDC|250VAC | ||
机械参数
| 颜色 | White | 深度 | 7 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.4 |
| 包装方式 | Bag | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 20.29 | 电缆端接方式 | IDC |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 24µin (0.60µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through | ||
