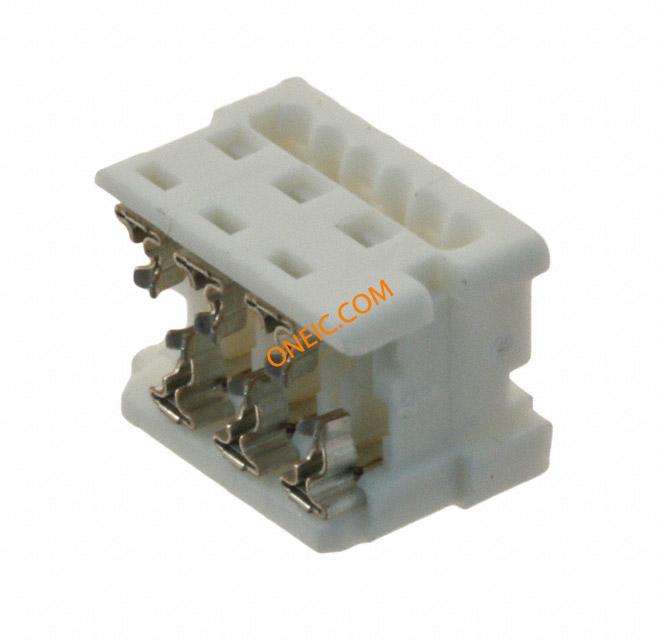

0903270357
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Embossed T/R CONN RCPT IDT 6POS 1.27MM TIN |
| 分类 |
商业参数
| 其他名称 | WM6819CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 1.2/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 7 |
| 间距 | 2.54 mm | 高度 | 6.4 |
| 包装方式 | Embossed Tape and Reel | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 10.13 | 电缆端接方式 | IDC |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 78.7µin (2.00µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through | ||
文档与媒体
相关型号
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

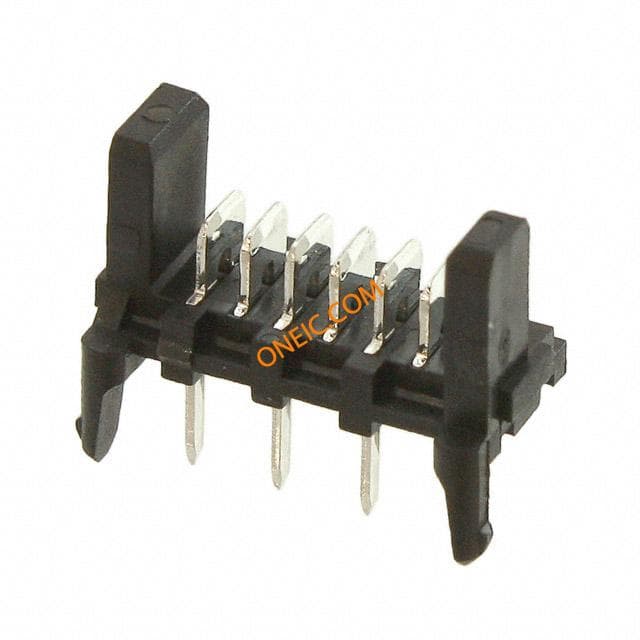

0903250006
molex
Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 6POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 6; tinned; 1.2A; 250V
90325-3006
molex
Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 6POS 1.27MM GOLD Header 1.27mm, RA, low pro,6w,pcb peg Headers & Wire Housings 1.27MM 6P RA HDR LO-PRO W/PCB PEGS Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 通孔

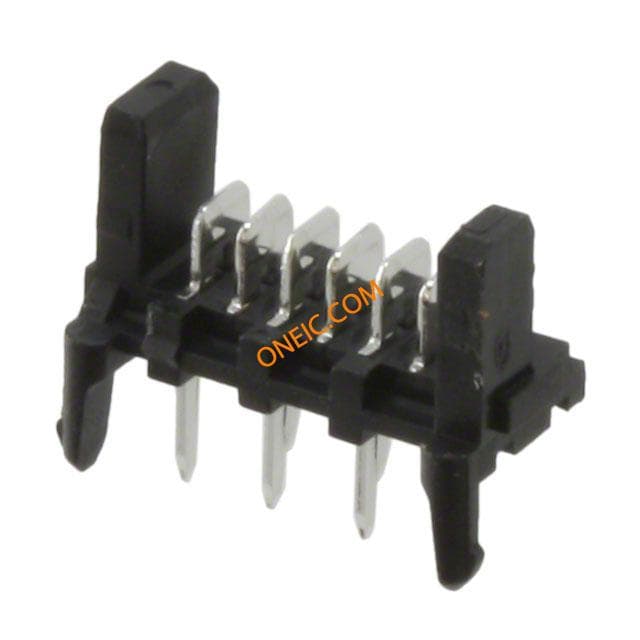

90325-9006
Molex Connector Corporation
CONN HEADER 6POS 1.27MM TIN T/H Header 1.27mm, vert, low pro, 6w Headers & Wire Housings PICOFLEX 6P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Tube Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 通孔

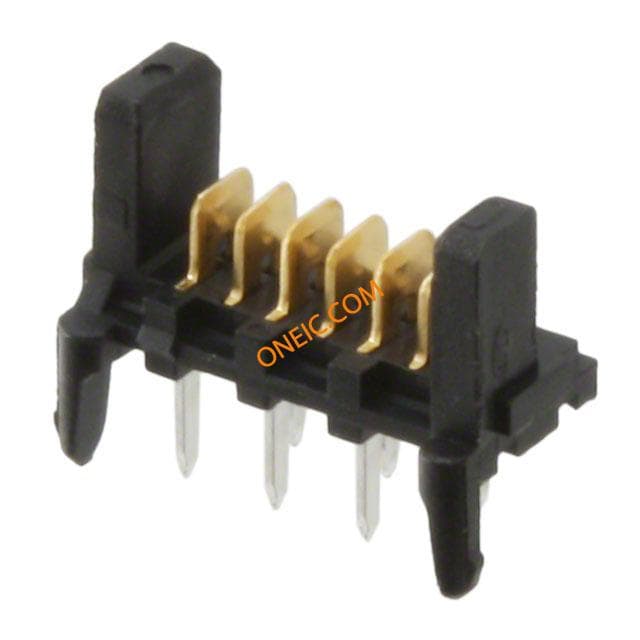

90325-7006
Molex Connector Corporation
CONN HEADER 6POS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 6P HDR AU R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Tube
