点击放大查看

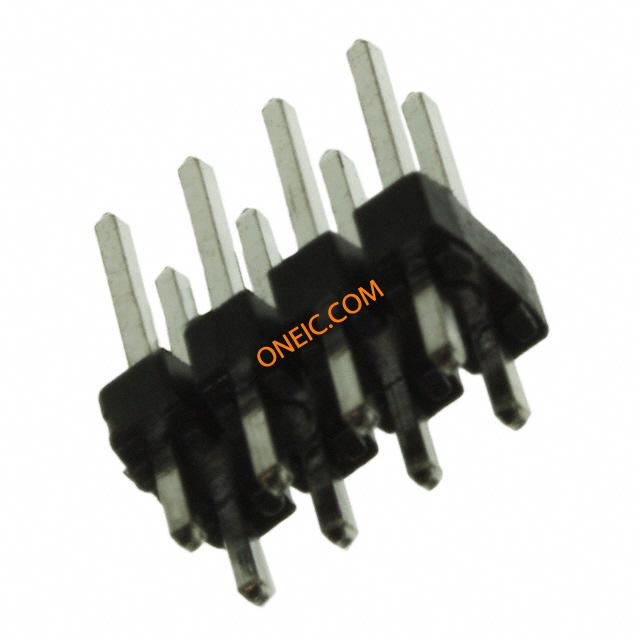

0901310124
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR TIN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | 最小输入电压 | 350V |
机械参数
| 颜色 | Black | 深度 | 5.08 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 10.16 |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 160µin (4.06µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
相关型号
0901430008
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100" DL CRIMP
¥1.8816
详情

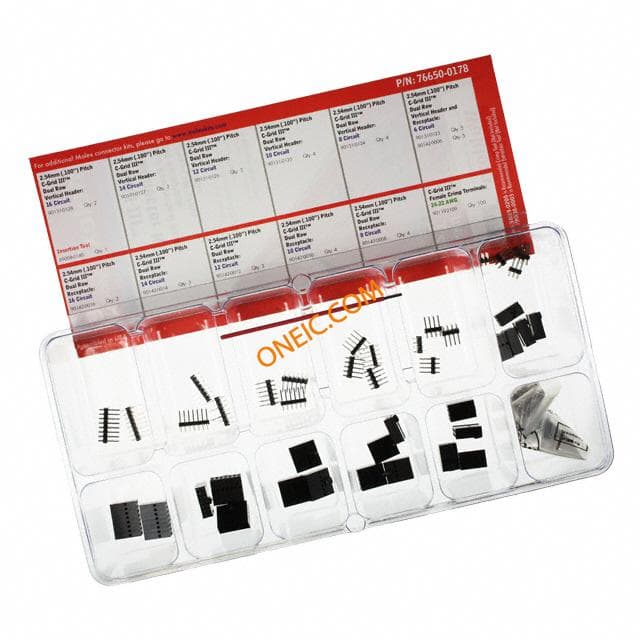

76650-0178
