点击放大查看

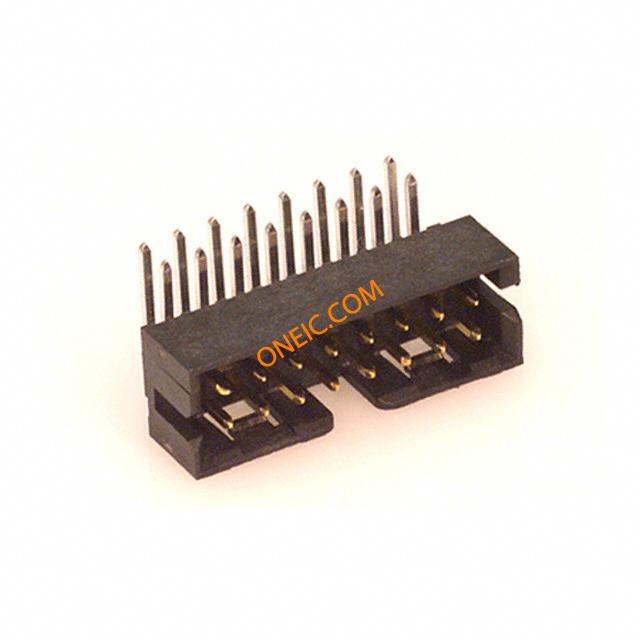

0878331620
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 16 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 16POS 2MM R/A GOLD |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 8.4 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 6.3 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 46 |
| 总长度 | 18.65 mm | 触点数 | 16 |
| 位数 | 16 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
相关型号

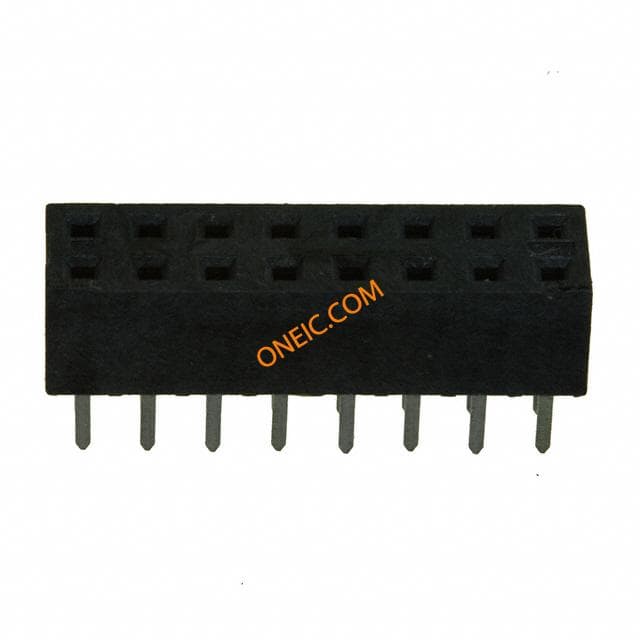

0791077007
molex
Conn Socket Strip RCP 16 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 16POS VERT

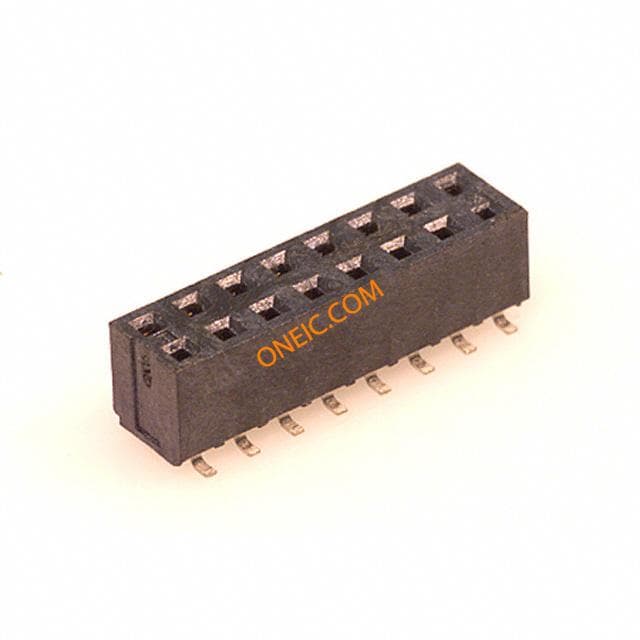

0791091007
molex
Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Tube CONN RECEPT 16POS 2MM VERT SMD
0791098657
molex
Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 16CKT
0791091057
molex
Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 16CKT SMD
0511101651
molex
Conn Housing RCP 16 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 16POS POLARIZED
0791098607
molex
Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 16CKT
0791081057
molex
Conn FFC/FPC Connector SKT 16 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 16CKT

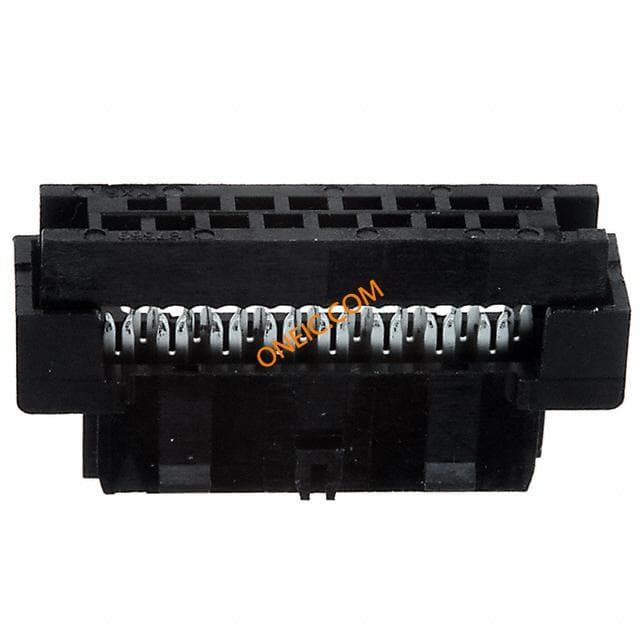

0875681694
Molex
Conn IDC Connector RCP 16 POS 2mm IDT RA Cable Mount Tray CONN RCPT 16POS 2MM IDT GOLD
0791081007
Molex
Conn FFC/FPC Connector SKT 16 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 16CKT
0875681693
Molex
Conn IDC Connector RCP 16 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 16POS 2MM IDT GOLD
0791098457
Molex
Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 16CKT

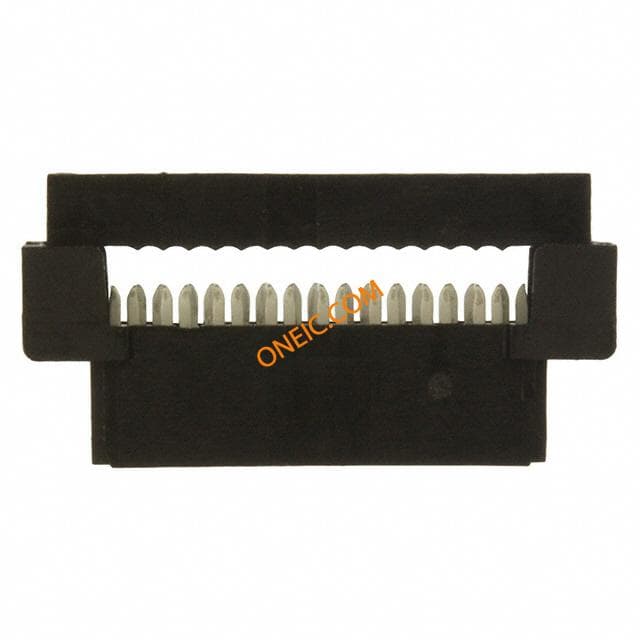

87568-1663
