点击放大查看

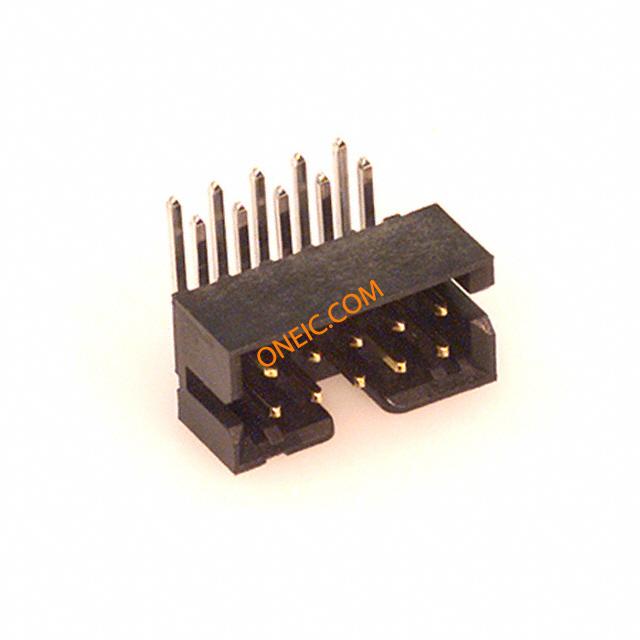

0878331020

制造商	Molex, LLC
描述	Conn Shrouded Header HDR 10 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 10POS 2MM R/A GOLD
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

2/Contact

最小输入电压

125V

机械参数

颜色	Black	深度	8.4
间距	2 mm	高度	6.3
包装方式	Tube	排间距	0.079" (2.00mm)
端接方式	Solder	触点形式	Male Pin
触头类型	Male Pin	引脚间距	0.079" (2.00mm)
外壳颜色	Black	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Gold Over Nickel
排数	2	触头材料	Phosphor Bronze
壳体材料	Nylon 46	总长度	12.65
板面高度	0.141" (3.60mm)	触点数	10
位数	10	接触长度 - 配合	0.141" (3.60mm)
接触镀层厚度	15µin (0.38µm)	每排/每行位置数	All

产品信息

类型	Shrouded Header	连接器性别	HDR
系列	Milli-Grid™ 87833	输出配置	Through Hole, Right Angle
加载位置数	All

文档与媒体

PDF 文档

0878331020_PCB_HEADERS.pdf
