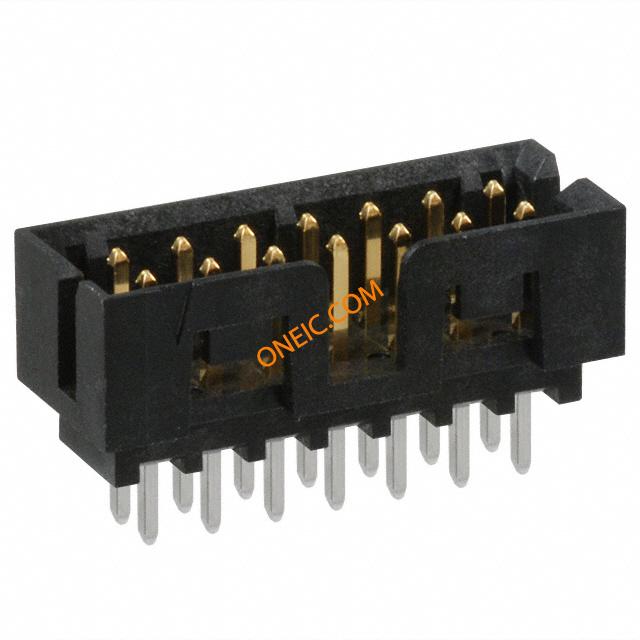

0878311420
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 14 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 14POS 2MM VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数

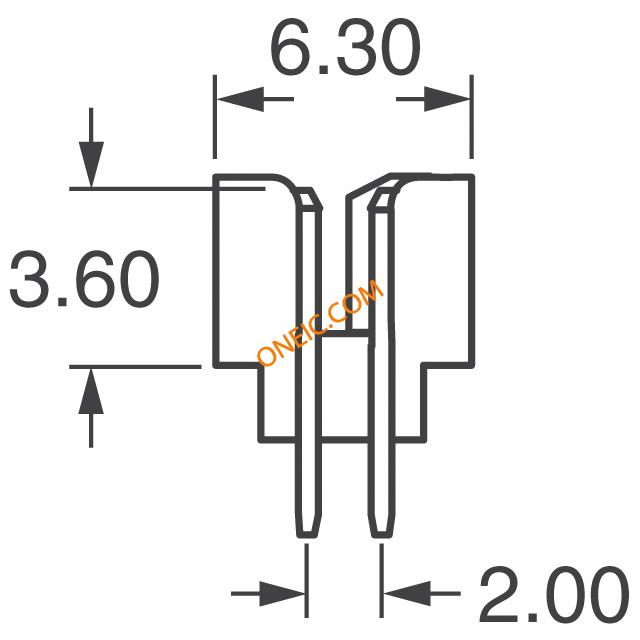

| 颜色 | Black | 深度 | 6.3 mm |

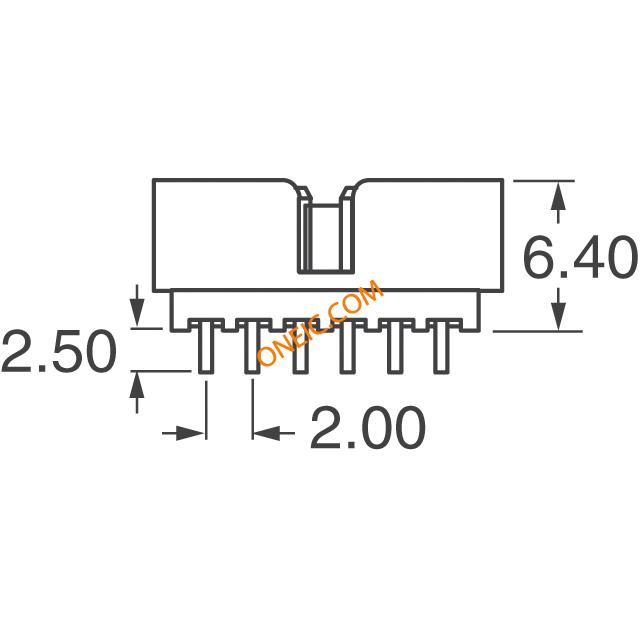

| 间距 | 2 mm | 高度 | 6.4 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 46 |
| 总长度 | 16.65 mm | 触点数 | 14 |
| 位数 | 14 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 已删除 | Compliant | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0791091206
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 14CKT
0791081006
molex
Conn FFC/FPC Connector SKT 14 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 14CKT
0791098456
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 14CKT
0791077006
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 14POS VERT

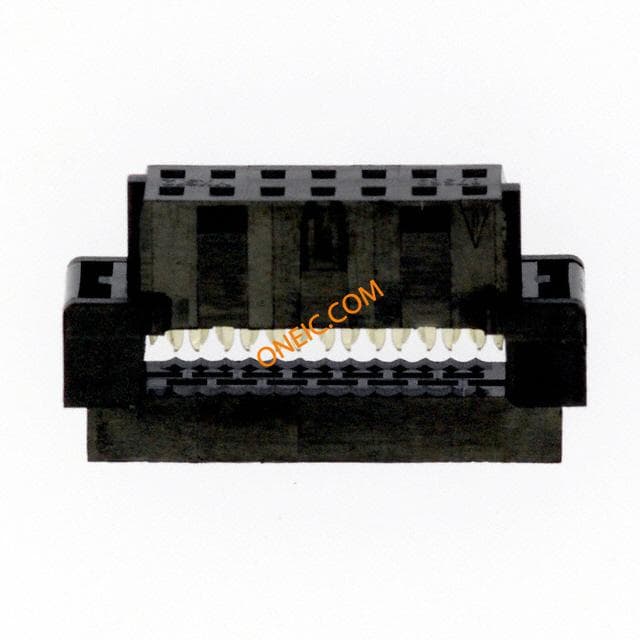

0875681493
molex
Conn IDC Connector RCP 14 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 14POS 2MM IDT GOLD
0791077256
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 14CKT
0791081056
molex
Conn FFC/FPC Connector RCP 14 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 14CKT
0791077206
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 14CKT

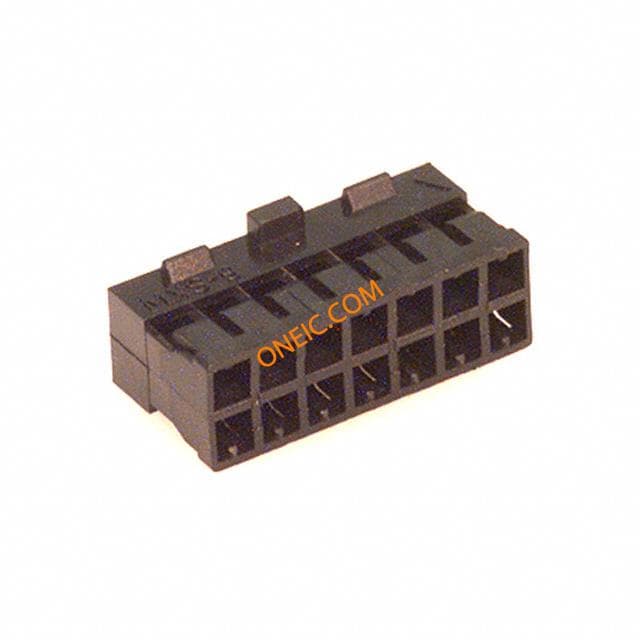

0511101451
molex
Conn Housing RCP 14 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 14POS POLARIZED Connector: wire-board; Milli-Grid; plug; female; PIN:14; 2mm
0791098406
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 14CKT
0791091006
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RECEPT 14POS 2MM VERT SMD
0791091056
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 14CKT SMD

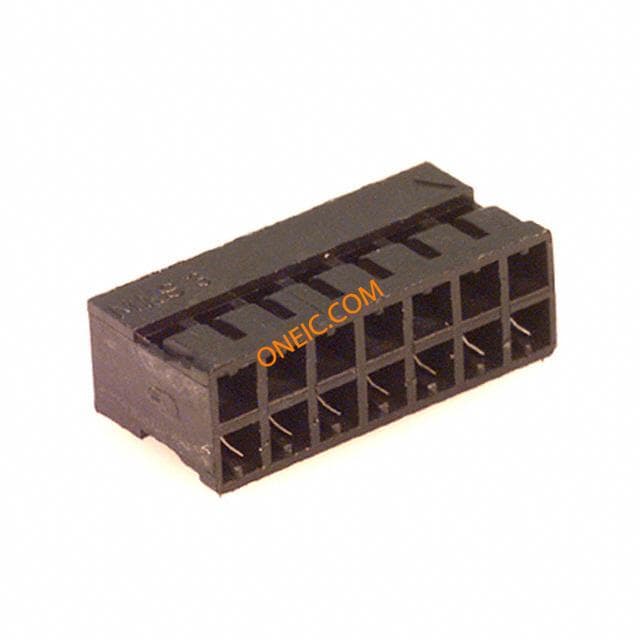

51110-1450
molex
Conn Housing RCP 14 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 14POS Housing 2.00mm Milli-Grid,14w, Headers & Wire Housings 14CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 14 路 直 母 电缆安装 压接连接器外壳

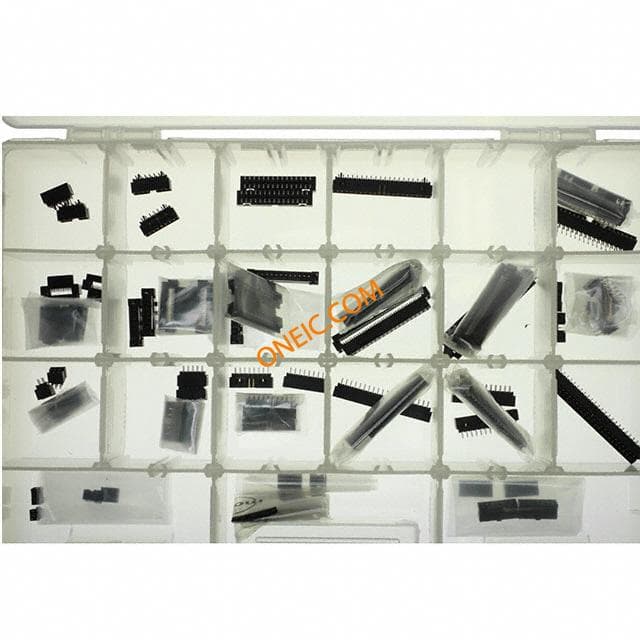

76650-0195
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MILLI-GRID DELUXE COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 ... Kit Description:SMT Vertical Header, Through-Hole Vertical and Right Angle Header and Receptacle and IDT ReceptacleKit Category:Wire to Board Solution:Off the BoardPackaging:Tackle Box: 11" by 7.25"Num. Pieces:160 MILLI-GRID DELUXE CONNECTOR KIT
0791091256
Molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 14CKT
0791077056
Molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 14POS
0791098656
Molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 14CKT
0791098606
Molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 14CKT

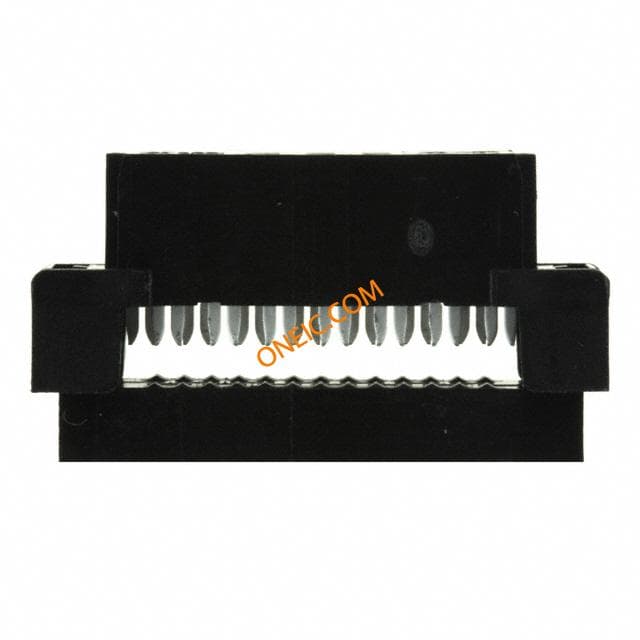

87568-1463
