点击放大查看

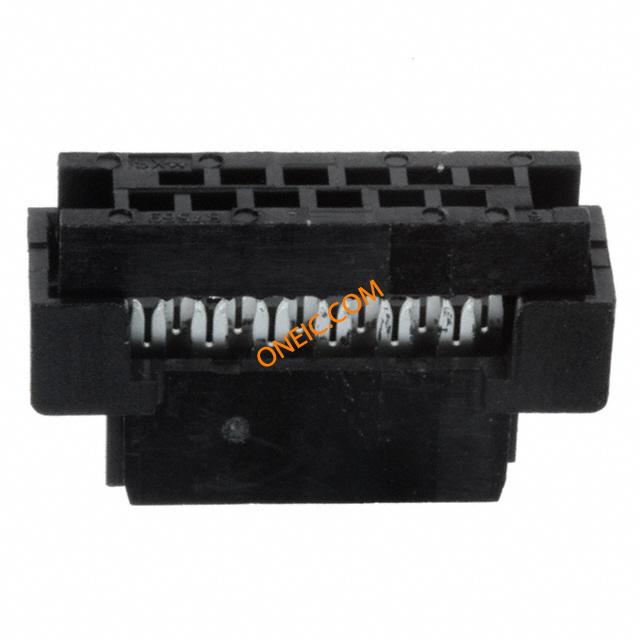

0875681273
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 12 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 12POS 2MM IDT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 1/Contact |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 5.87 |
| 间距 | 2 mm | 高度 | 11.4 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.079" (2.00mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 18.65 | 电缆端接方式 | IDC |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through | ||
文档与媒体
相关型号
0621002000
molex
Assembly Tools, Manual Handtool IDT - Manual - Hand Tool HANDTOOL MANUAL IDT
0875691012
molex
Connector Accessories 12 POS Dual Row IDT Strain Relief Thermoplastic Black Bag 2MM MGRID IDT STRRLF DR NYL BLK

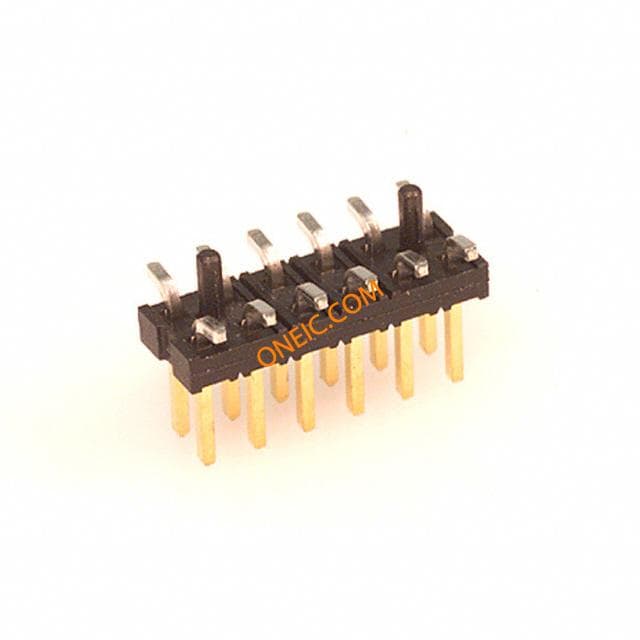

0877591250
molex
Conn Unshrouded Header HDR 12 POS 2mm Solder ST SMD Tube CONN HEADER 12POS 2MM VERT SMD Pin header; pin strips; Milli-Grid; male; PIN:12; 2mm; SMT; 2x6

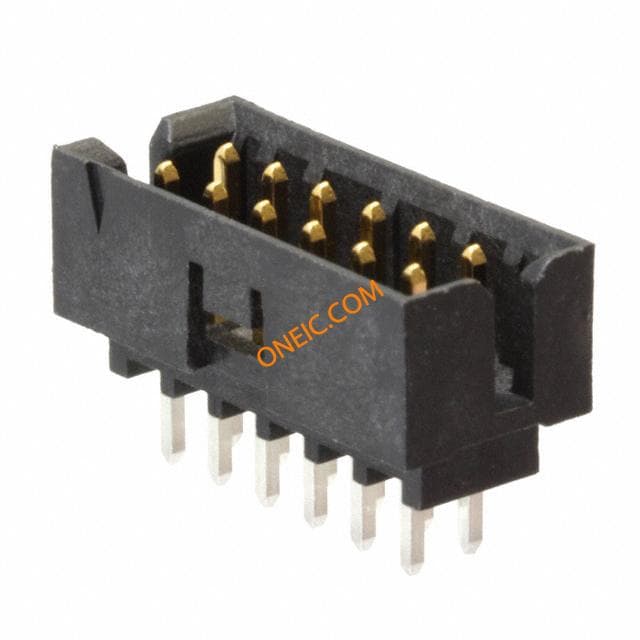

0878311241
molex
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 12POS VERT 2MM T/H

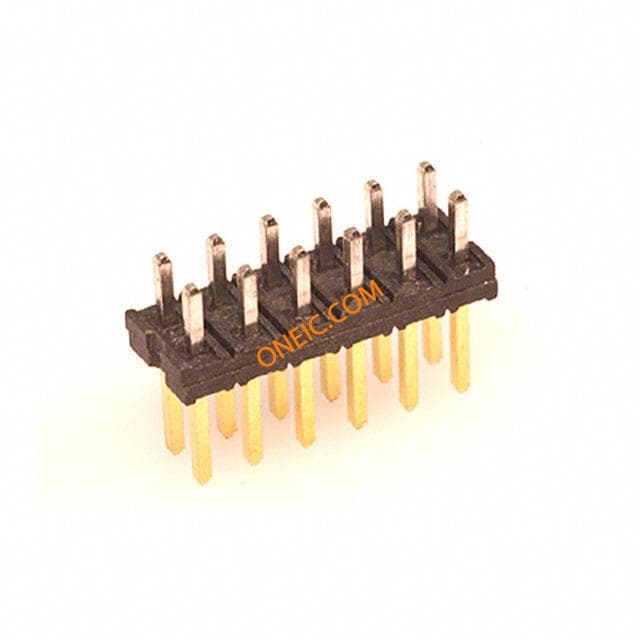

0877581216
molex
Conn Unshrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 12POS 2MM VERT GOLD
0621002200
molex
MANUAL ARBOR PRESS W/ TOOL KIT MANUAL PRESS WITH IDT RIBBON CABLE TOOL KIT

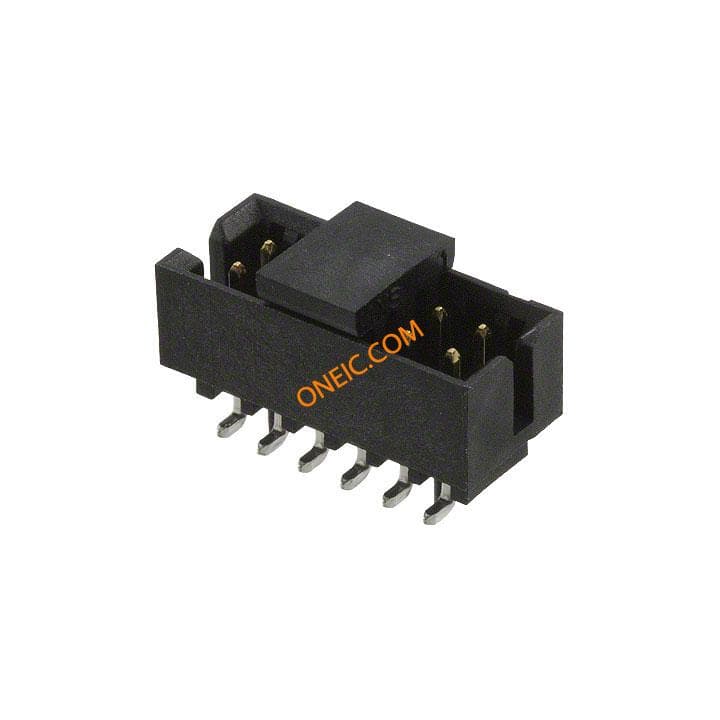

0878321207
