点击放大查看

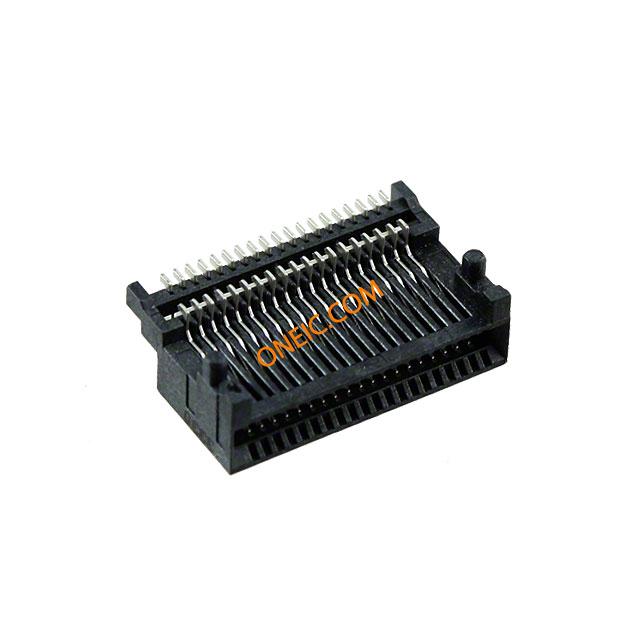

0755860010

制造商	Molex, LLC
描述	Conn SCSI RCP 38 POS 0.8mm Solder RA SMD 38 Terminal 1 Port T/R CONN RCPT 38POS IPASS RT ANG SMD Connector
分类	连接器解决方案接线端子DIN导轨接线端子

商业参数

其他名称

WM1169CT

标准包装数量

Cut Tape

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

0.5/Contact A

最小供电电压

30VDC/30VAC

机械参数

深度	11.5 mm	间距	0.8 mm
高度	5.35 mm	包装方式	Tape & Reel (TR)
端接方式	Solder	安装类型	Surface Mount
连接器类型	SAS, Mini	接触镀层	Gold
安装样式	Surface Mount	连接器样式	Receptacle
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	18.2 mm	触点数	38 POS
位数	38	接触镀层厚度	15µin (0.38µm)

产品信息

类型	SCSI	连接器性别	RCP
已删除	Compliant	产品特性	Board Guide
端口数	1 Port

环境参数

工作温度

-40C to 80C

结工作温度

80C

文档与媒体

PDF 文档

0755860010_IO_CONNECTORS.pdf
