0744410001
| 制造商 | Molex, LLC |
| 描述 | Conn SFP RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port T/R SFP CONNECTOR CONN RECEPT 20POS R/A GOLD SMD Connector |
| 分类 |
商业参数
| 其他名称 | WM1633CT | 标准包装数量 | Cut Tape |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 0.5/Contact A | 最小输入电压 | 30VAC |
| 最小供电电压 | 30VAC | ||
机械参数
| 深度 | 8.23 mm | 间距 | 0.8 mm |
| 高度 | 5.37 mm | 包装方式 | Tape and Reel |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | SFP |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 连接器样式 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 11 mm |
| 触点数 | 20 | 位数 | 20 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | SFP | 连接器性别 | RCP |
| 已删除 | Compliant | 产品特性 | Board Guide |
| 端口数 | 1 | 射频系列/标准 | 74441 |
| 加载位置数 | 20 | ||
环境参数
| 工作温度 | -55C to 105C | ||
相关型号

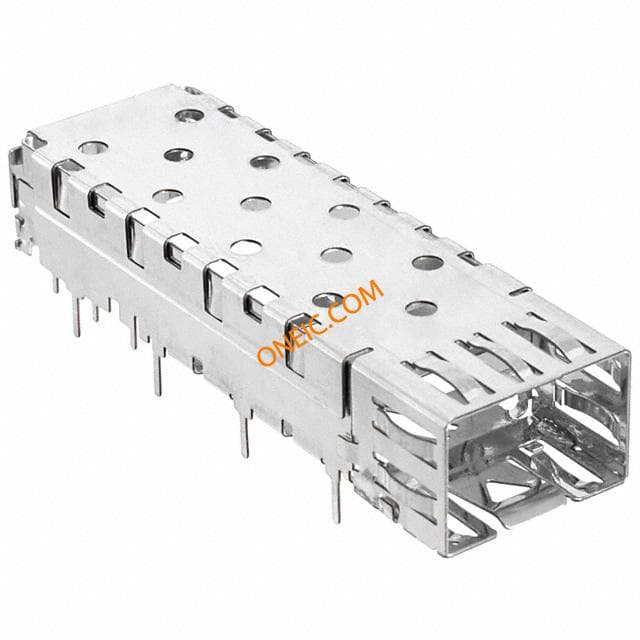

0739270010
molex
Connector Accessories Small Form Factor Pluggable SFP Cage Assembly High Performance Alloy Right Angle Tray CONN SFP CAGE R/A SOLDER POST

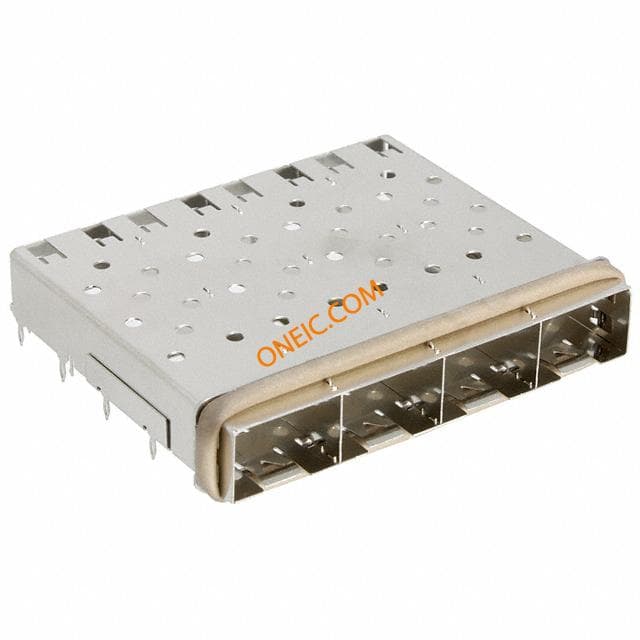

0739270411
molex
Connector Accessories SFP Ganged Cage Right Angle Tray CONN SFP CAGE 1X4 PRESS-FIT
73929-0001
Molex
Cable Assemblies SFP Copper Patch Cbl 1m Passive CABLE SFP 20POS MALE-MALE 1M Ethernet Cables / Networking Cables SFP Copper Patch Cbl 1m Passive

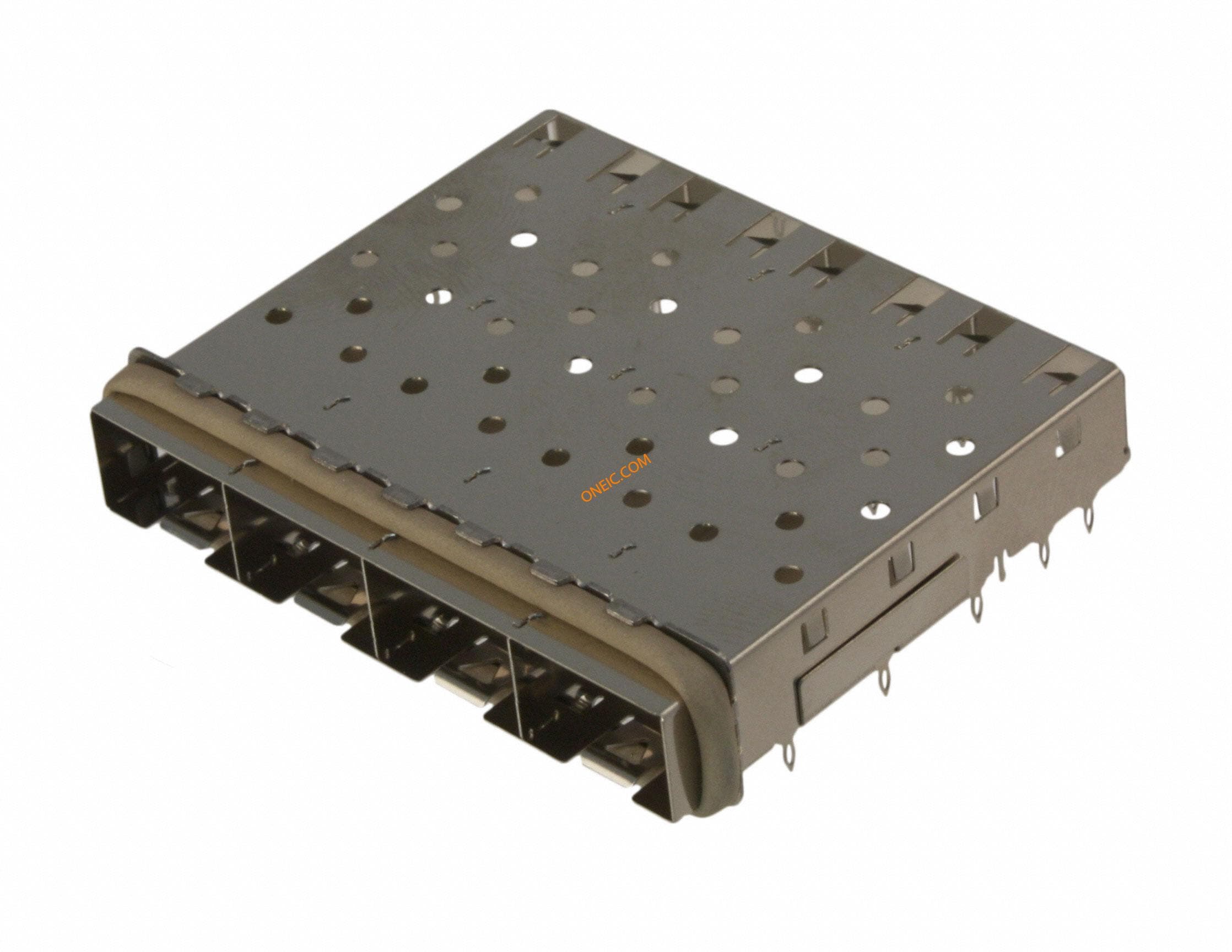

0747280420
Molex
Connector Accessories SFP Light Pipe Kit Tray 1X4 GANGED CAGE W/PRESS FIT

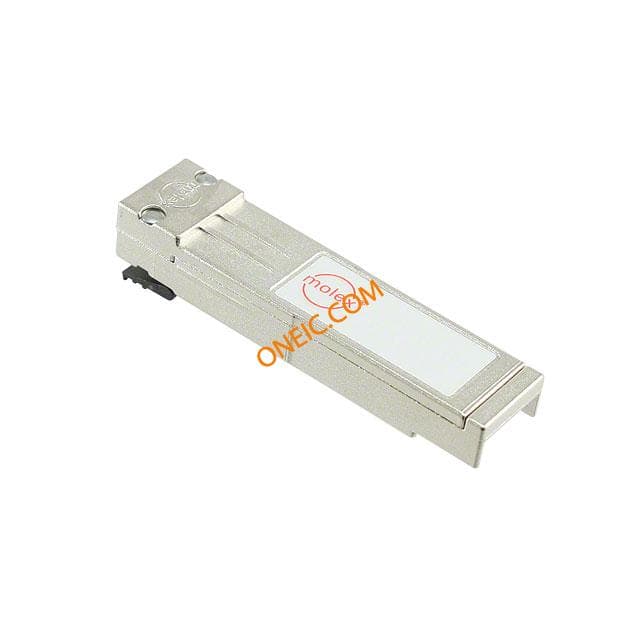

0747650906
Molex
Connector Accessories SFP Cage Bag Light Blue CONN SFP+ LOOPBCK ADAPTER UNIVER
0747230004
Molex
Connector Accessories SFP Ganged Cage Tray 1X5 SFP CAGE ASSY W/ PRESS PINS
0747220004
Molex
Connector Accessories SFP Ganged Cage Tray 1X2 SFP CAGE ASSY W/ PRESS PINS

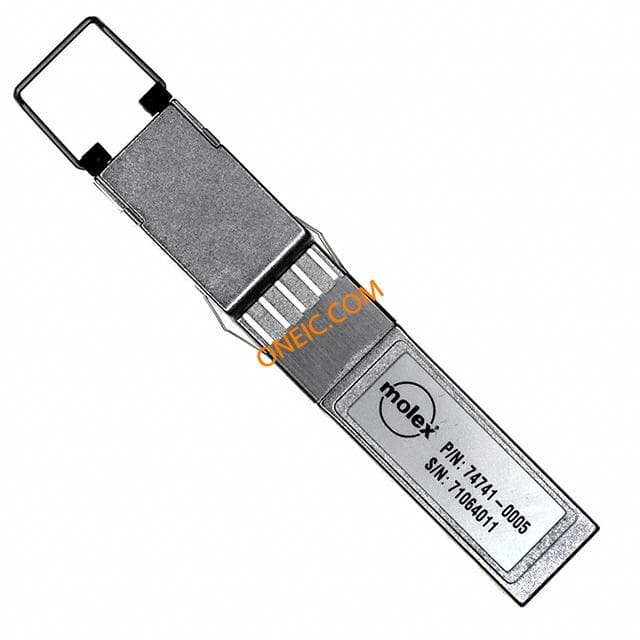

74741-0005
Molex Connector Corporation
CONN ADAPT 1000 BASE-T SFP Conn SFP Adapter PL/F 10/10 POS 0.8mm ST 20 Terminal 1/1 Port Bag

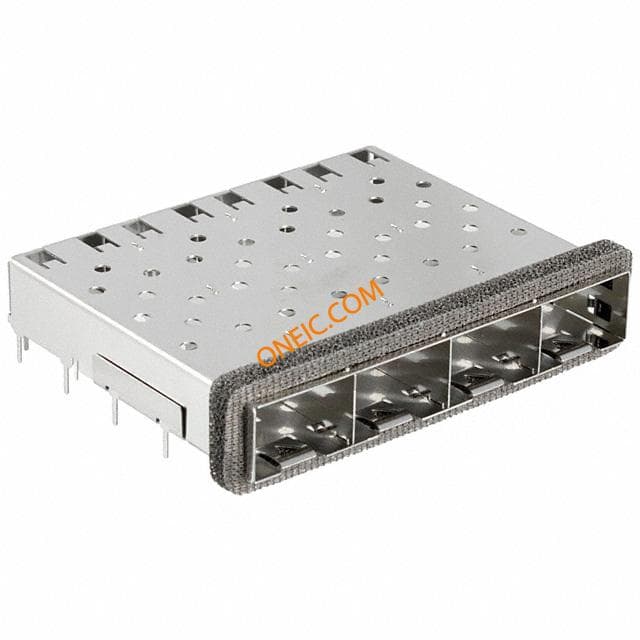

0739270402
Molex Inc
CONN SFP CAGE 1X4 W/SOLDER POST

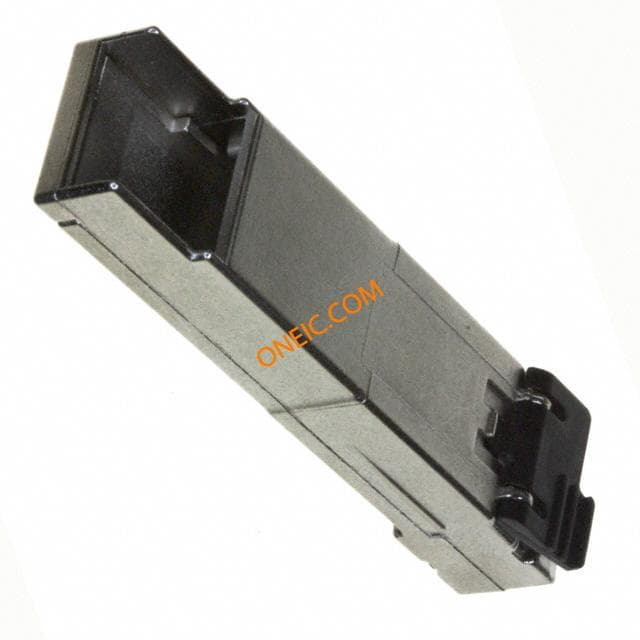

74720-0510
Molex Connector Corporation
CONN PLUG SFP SHIELD HORIZONTAL I/O Connectors SFP EMI Plug Conn SFP PL ST 1 Port Tray
74720-0501
Molex Connector Corporation
CONN SFP LOOPBACK ADAPTER YELLOW I/O Connectors Loopback Adapter Conn SFP Adapter 10/10 POS RA 1 Port Tray

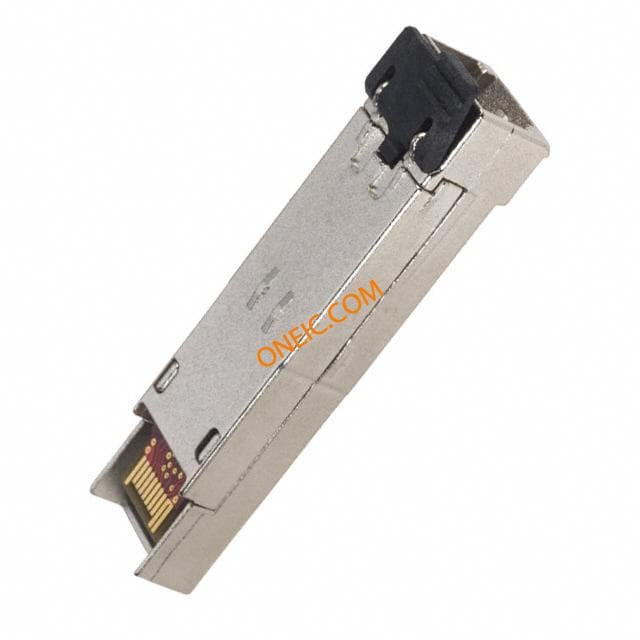

74720-0202
