点击放大查看

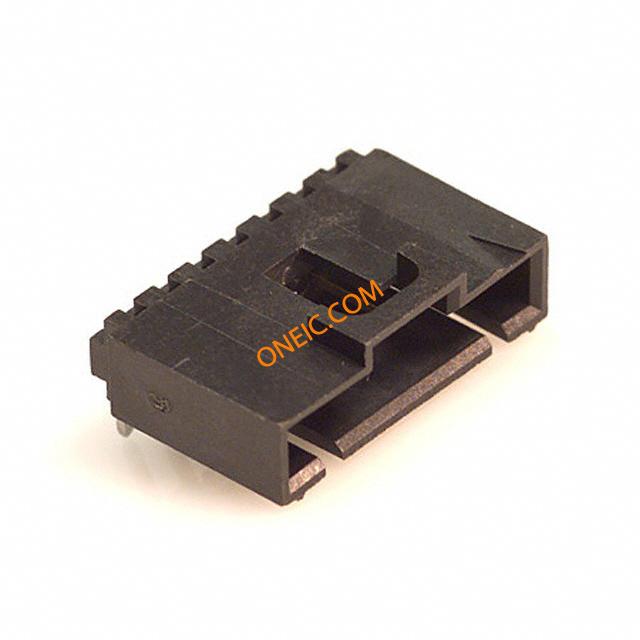

0705530006
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 7POS .100 R/A GOLD |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 13.59 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.99 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 20.33 | 触点数 | 7 |
| 位数 | 7 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 行业别名 | 70553-0006, 705530006 | 加载位置数 | All |
文档与媒体
相关型号

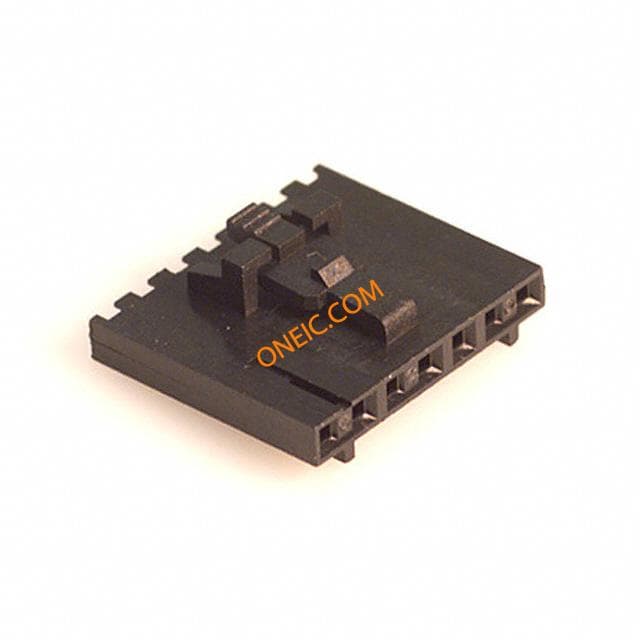

0050579407
molex
Conn Housing RCP 7 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 7POS .100 W/LATCH
15-47-4073
molex
Conn IDC Connector F 7 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 7POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt G Fem 15 SAu 7Ckt

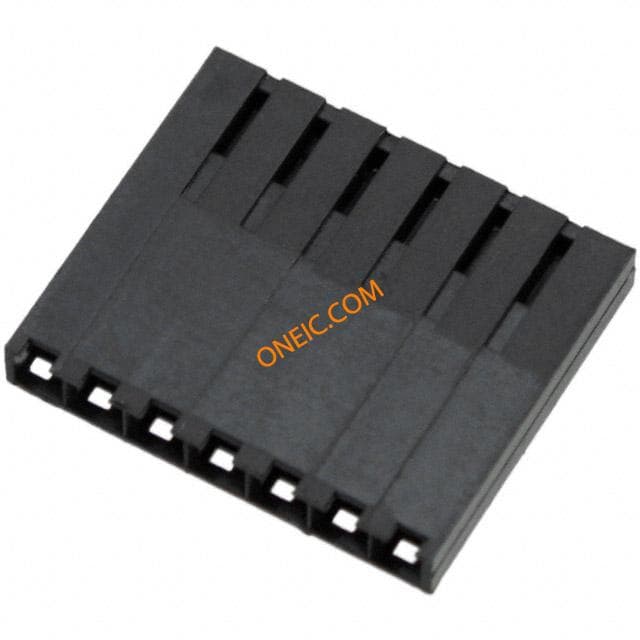

0050579207
Molex
Conn Housing RCP 7 POS 2.54mm Crimp ST Bag CONN HSG 7POS .100 SINGLE VER C
0704002072
Molex Inc
CONN SL IDT OPT G GOLD 7POS
15-38-8070
Molex Connector Corporation
CONN FFC FEMALE 7POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 7CKT TIN Conn IDC Connector F 7 POS 2.54mm IDT ST Cable Mount Tube

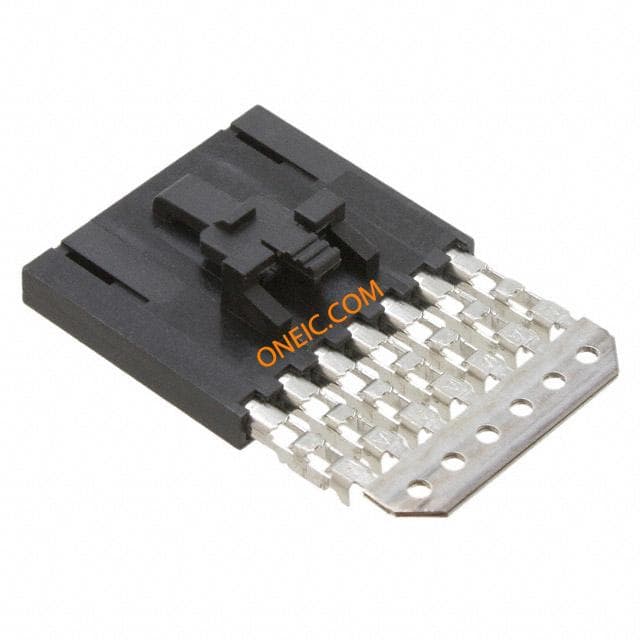

14-60-0072
