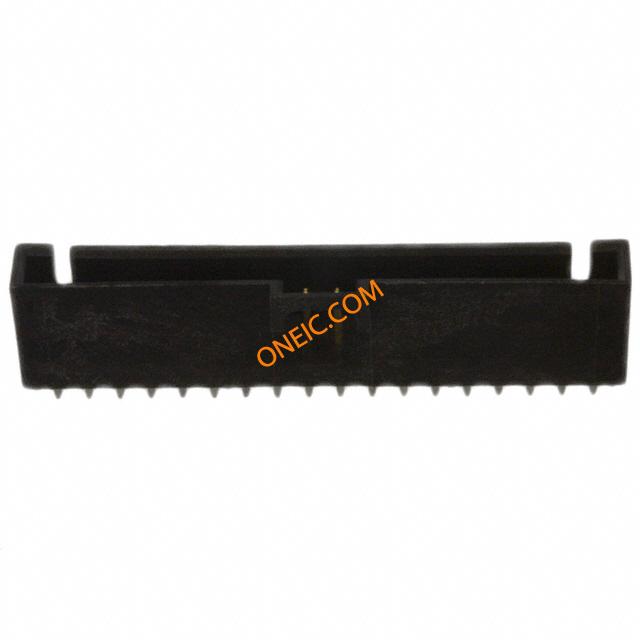

点击放大查看
0705430017
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 18POS .100 VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触点数 | 18 |
| 位数 | 18 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
