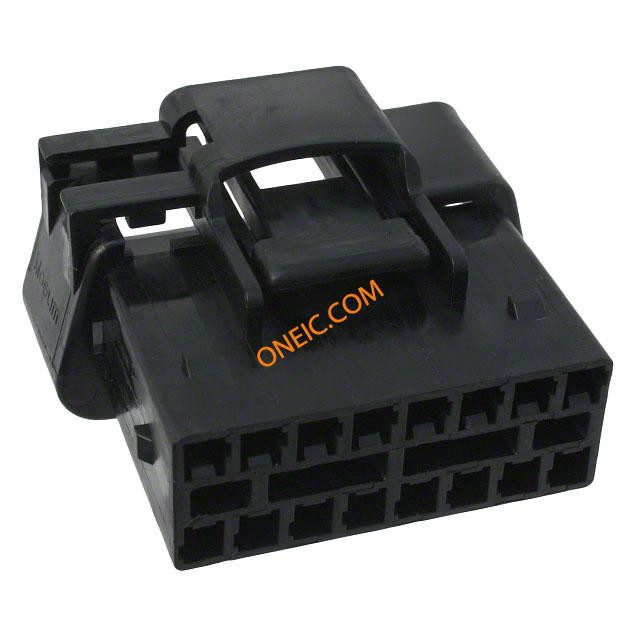

0685031602
| 制造商 | |
| 描述 | Conn Housing RCP 16 POS 4mm Crimp ST Cable Mount OBD MALE HOUSING 16POS Connector: diagnostic OBD II; plug; male; PIN:16; Locking: lock |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 30V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 33.1 mm |
| 间距 | 4 mm | 高度 | 21.71 mm |
| 重量 | 0.01 kg | 触头类型 | Signal |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug for Male Contacts | 安装样式 | for cable |
| 排数 | 2 | 连接器样式 | D-Type |
| 锁定特性 | lock | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 40.35 | 包装数量 | 800 |
| 连接器 - 电缆 | plug | 触点数 | 16 |
| 介电材料 | Polybutylene Terephthalate (PBT), Polyester | 位数 | 16 |
产品信息
| SPG | 800 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -40...85°C | ||
文档与媒体
PDF 文档
相关型号

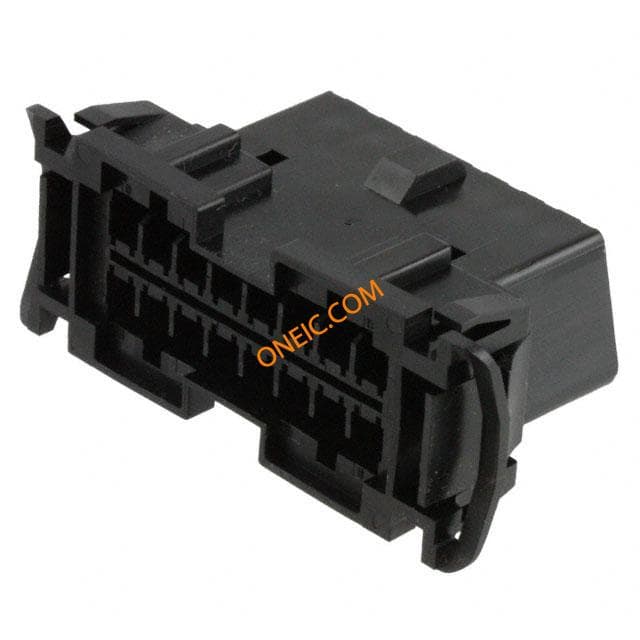

0511151601
Molex, LLC
. 0511151601 - Receptacle for Female Contacts Housing D-Type Connector 16 Position from Molex. from now!
¥4.6560
详情

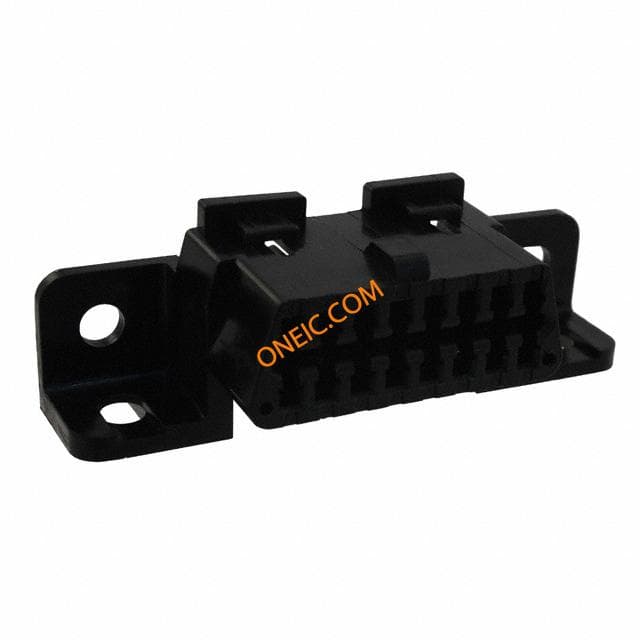

0511161601
Molex, LLC
. 0511161601 - Receptacle for Female Contacts Housing D-Type Connector 16 Position from Molex. from now!
¥5.7222
详情
暂无图片
0685030101
molex
Connector Accessories Cover OBD WIRE DRESS COVER
¥13.3606
详情
暂无图片
0685030103
Molex
Conn Housing PL Crimp ST Cable Mount OBD PLUG CPA
¥2.9927
详情

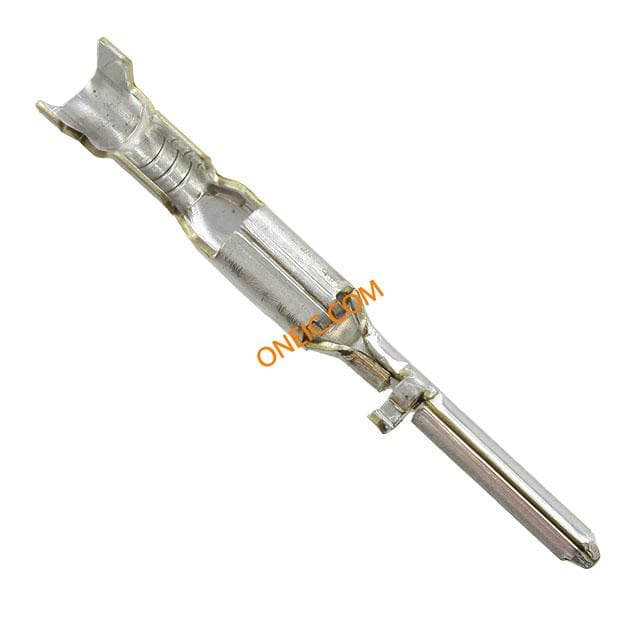

0579649702
