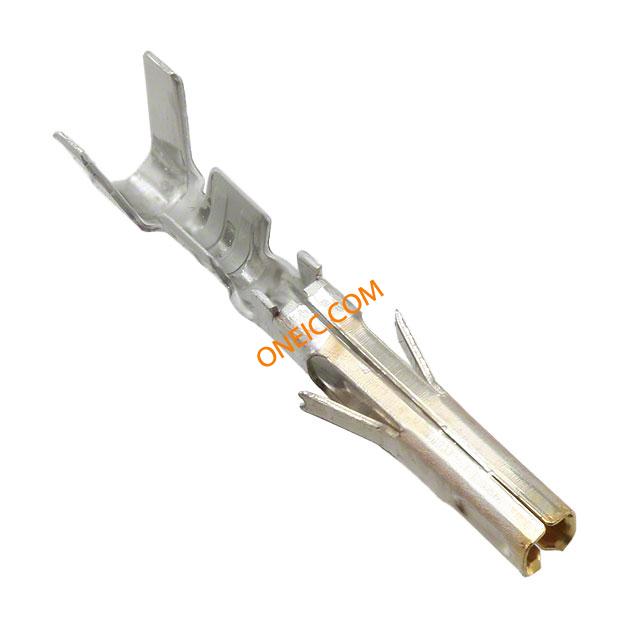

0457501211
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CRIMP TERM. FEM 18-20AWG GOLD |
| 分类 |
商业参数
| 其他名称 | WM3280CT | 标准包装数量 | 4,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 13 |
机械参数
| 深度 | 3.18 | 间距 | Not Required mm |
| 高度 | 4.5 | 包装方式 | Reel |
| 导线线规 | 18-20 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Copper-Nickel-Silicon | 壳体材料 | Not Required |
| 总长度 | 14.83 | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
