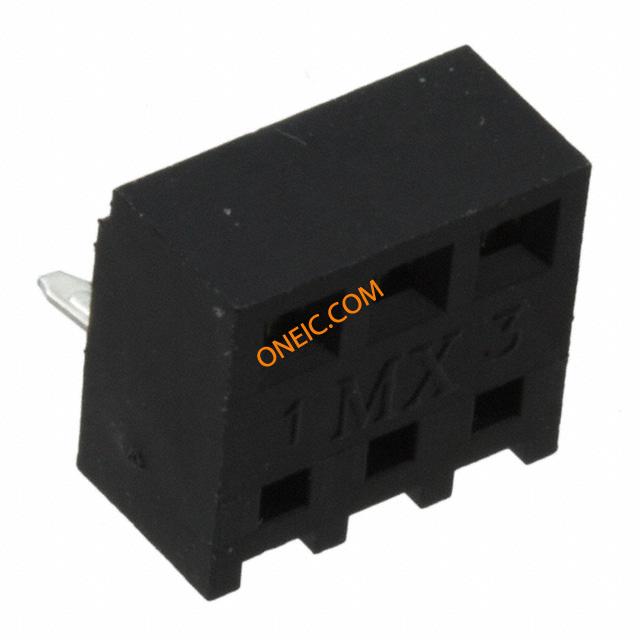

0448120003
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .100" TIN PCB |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 5/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 7.5 |
| 间距 | 0.100" (2.54mm) | 高度 | 4.5 |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Bottom or Top Entry |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass Alloy | 壳体材料 | Nylon |
| 总长度 | 8.38 | 触点数 | 3 |
| 位数 | 3 | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 加载位置数 | All | ||
