0444411005
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 5 POS 7.49mm Crimp ST Bag CONN RCPT SR V-2 5POS |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18A | 最小输入电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 27.38 |
| 间距 | 7.49 mm | 高度 | 15.24 |
| 包装方式 | Bag | 触头类型 | Female Blade Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 38.3 | 触点数 | 5 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 5 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
文档与媒体
相关型号
0431604105
Molex, LLC
. 0431604105 - 5 Position Header, Male Blades Connector Solder 0.295" (7.50mm) Through Hole from Molex. from now!
0431600305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431604305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431600105
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER CONN HDR 5POS 7.50MM PCB SLDR
0431605305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0431607305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0431606305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431601305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0436801005
Molex, LLC
. 0436801005 - 5 Position Blade Type Power Housing Connector Plug Natural 0.295" (7.50mm) from Molex. from now!
0431602105
Molex
Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER CONN HDR 5POS 7.50MM PCB SLDR Connector: wire-board; SABRE; socket; male; PIN:5; tinned; 18A; 600V
0431605105
Molex
Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
43680-2005
Molex Connector Corporation
CONN PLUG 5POS 7.5MM CONN HOUSING 5POS 7.50MM BLACK Sabre cable plug 7.5mm 5W Headers & Wire Housings PLUG SINGLE ROW 5P 7.50mm Pitch Sabre™ Plug Crimp Housing, UL 94V-0, 5 Circuits, Glow Wire Compatible Molex SABRE 系列 7.49mm 节距 5 路 直 公 压接连接器外壳

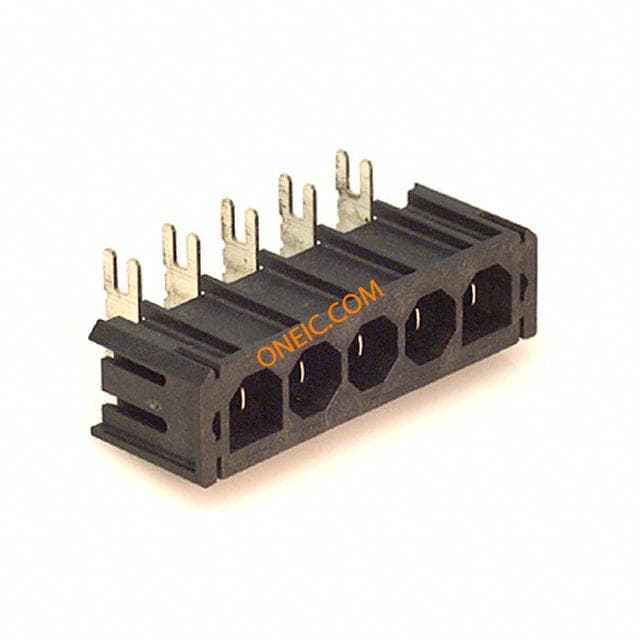

43160-1105
Molex Connector Corporation
CONN HEADER R/A 5POS TIN SOLDER Headers & Wire Housings R.A. HDR SMC 5P without board lock Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray

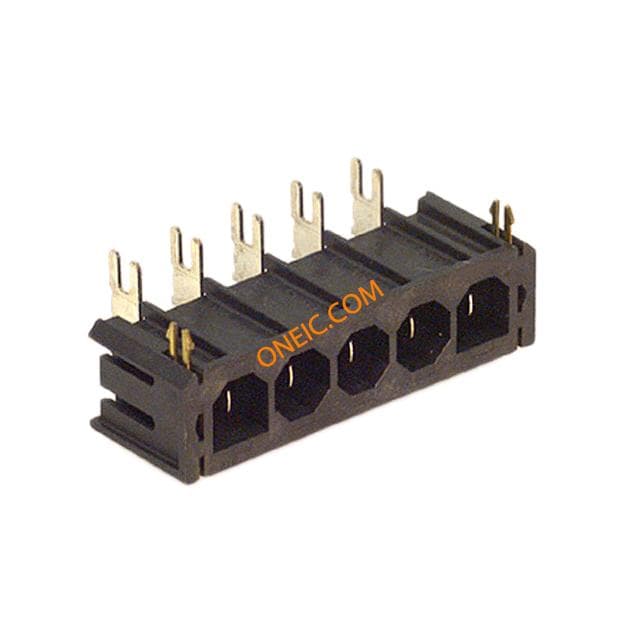

43160-3105
