0441670001
| 制造商 | |
| 描述 | Conn Housing F 10 POS 5.59mm Crimp ST Bag CONN HOUSING 6POS 5.59MM NATURAL |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Natural | 间距 | 0.220" (5.59mm) |
| 包装方式 | Bag | 触头类型 | Female Blade Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 10 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 6 |
| 绝缘材料 - 材质 | Polyamide (PA66), Nylon 6/6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
相关型号
暂无图片
0414224001
Molex, LLC
. 0414224001 - Blade Contact Crimp Female Blade Socket from Molex. from now!
¥0.5490
详情
暂无图片
0040021601
molex
Contact SKT Crimp ST Cable Mount Reel 250 SPADE PUSH ON CRP TERM LIF
¥0.7770
详情
0005060117
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-18AWG TIN
¥0.2351
详情

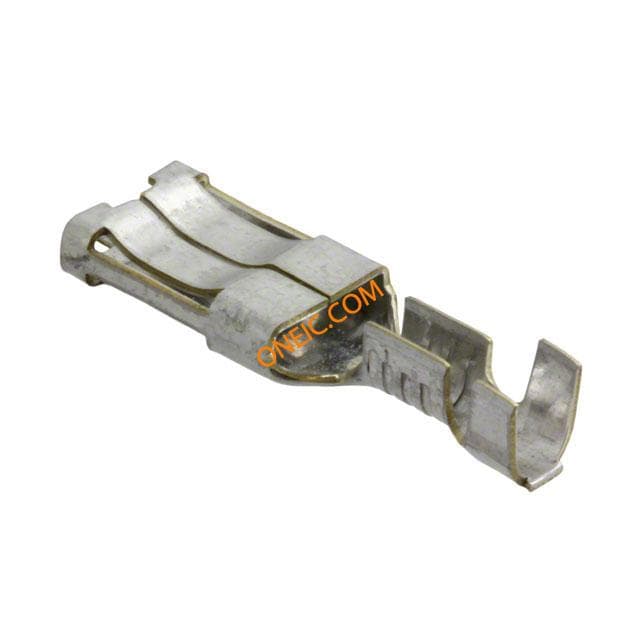

0040021602
