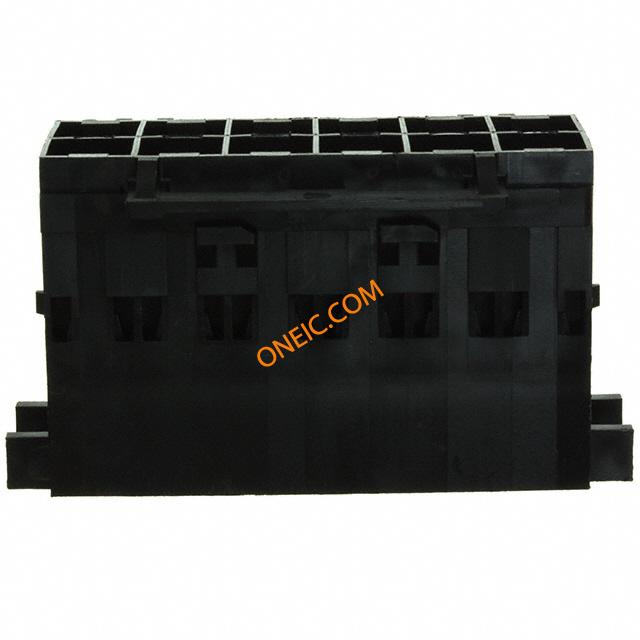

0439382104
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 12 POS 10mm Crimp ST Bag CONN PLUG 12POS PANEL MOUNT |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 43/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 深度 | 39.6 |
| 间距 | 0.394" (10.00mm) | 高度 | 37.1 |
| 包装方式 | Bag | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 排数 | 2 | 壳体材料 | Polyester |
| 总长度 | 71.3 | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | ||
