点击放大查看
0417910840
| 制造商 | Molex, LLC |

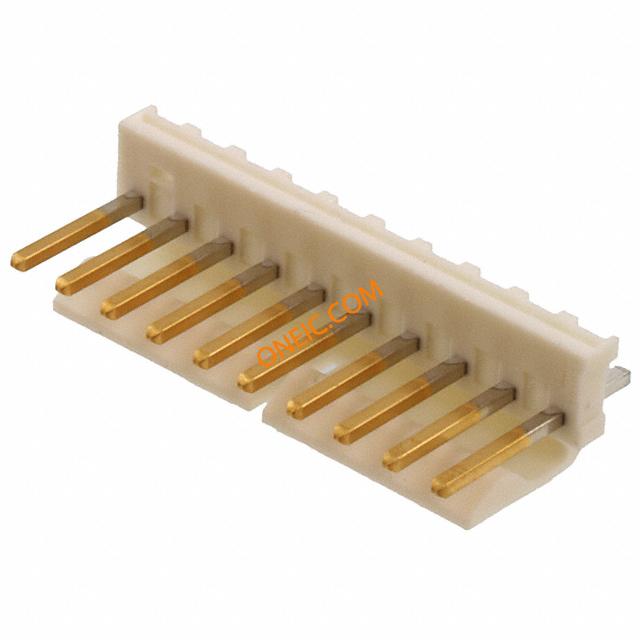

| 描述 | Conn Wire to Board HDR 10 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 10POS VERT GOLD |
商业参数
| 标准包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6 | 最大额定电流 | 7/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Natural | 深度 | 10.01 |
| 间距 | 0.156" (3.96mm) | 高度 | 14.73 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 39.47 |
| 触点数 | 10 | 位数 | 10 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 加载位置数 | All | ||
