点击放大查看

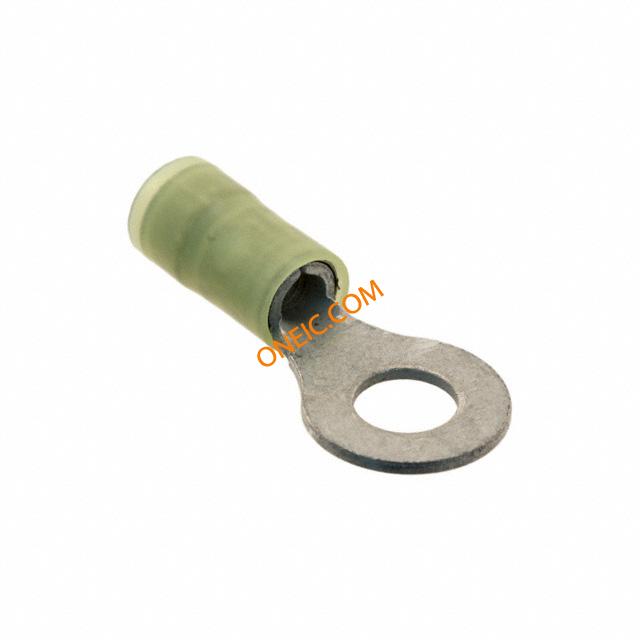

0190730188
| 制造商 | Molex, LLC |
| 描述 | Ring Tongue Terminal 10-12AWG 31.95mm 13.72mm Electro-Tin Bag CONN RING TERM 1/4 10-12AWG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Yellow | 深度 | 13.72 mm |
| 镀层 | Electro-Tin | 包装方式 | Bag |
| 厚度 | 0.040" (1.02mm) | 绝缘类型 | Insulated |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 接触镀层 | Tin | 壳体镀层 | Electro-Tin |
| 触头材料 | Copper | 总长度 | 1.258" (31.95mm) |
| 绝缘直径 | 0.225" (5.72mm) | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.540" (13.72mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
