点击放大查看

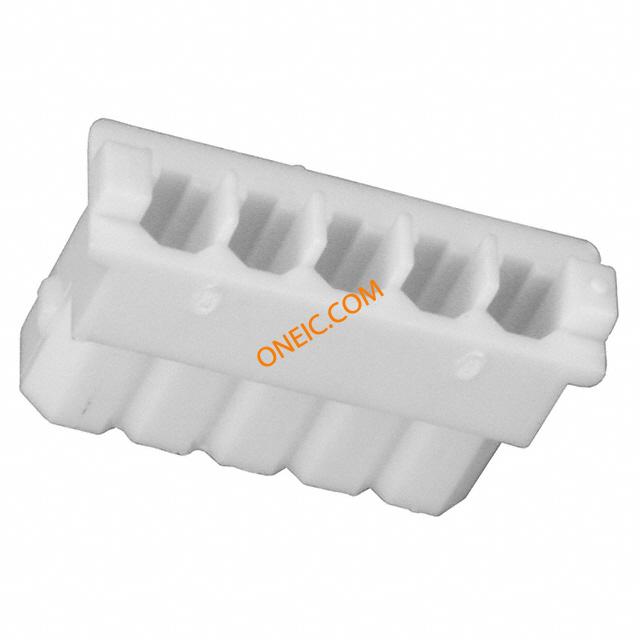

0050375053
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 5 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 2.5MM SHROUD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact A | 最小输入电压 | 250V |
| 最小供电电压 | 250V | ||
机械参数
| 深度 | 3.9 mm | 间距 | 2.5 mm |
| 高度 | 8 mm | 包装方式 | Bag |
| 导线线规 | 22-28 | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon 66 | 总长度 | 14.9 mm |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0008701039
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0022035055
molex
Conn Shrouded Header HDR 5 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 5POS 2.5MM VERT TIN
0008701040
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag
0039000160
molex
2.5 LOW PROFILE CRIMP RECEPTACLE Contact SKT Crimp ST Cable Mount Reel 2.5 LOW PROFILE CRIMP REC
76650-0167
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT CONN MINI-SPOX 2.5MM Headers & Wire Housings MINISPOX 2.5MM KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle.Kit Category:Wire to BoardSolution:Off the boardPackaging:Clamshell: 12.75" by 6"Num. Pieces:214

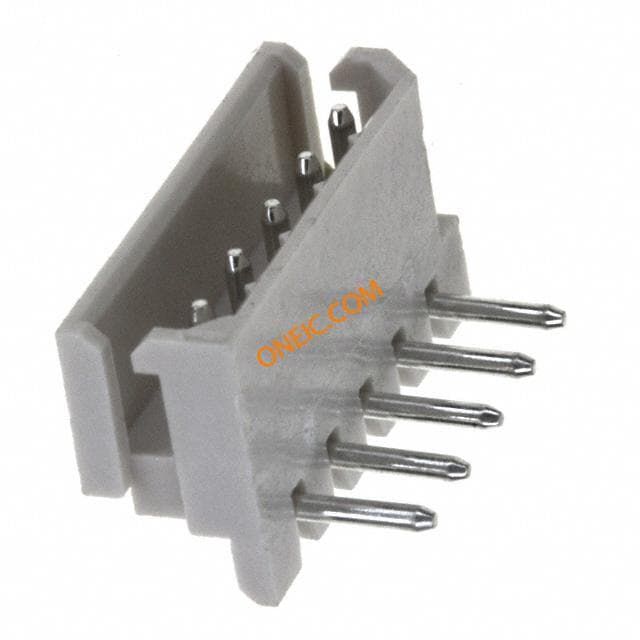

22-05-7055
