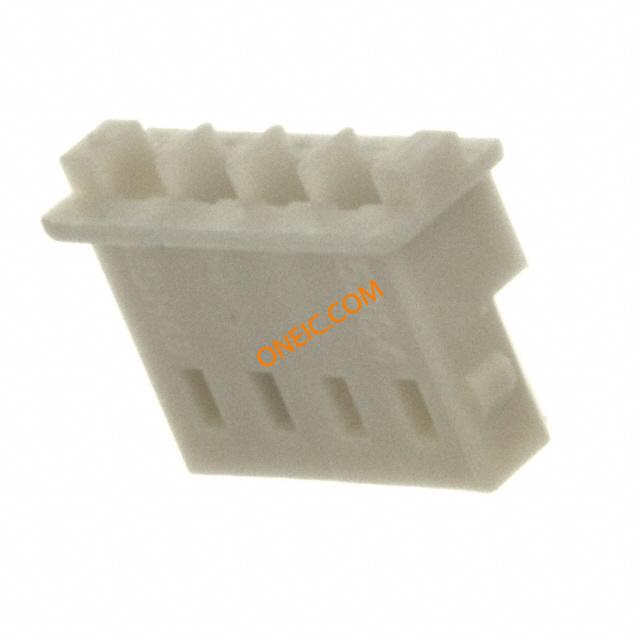

0050375043
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 2.5mm Crimp ST Bag CONN HOUSING 4POS 2.5MM SHROUD |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 深度 | 3.9 mm | 间距 | 2.5 mm |
| 高度 | 8 mm | 包装方式 | Bag |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 12.4 mm | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 已删除 | Compliant |
| 行业别名 | 50-37-5043, 50375043 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0022035045
molex
Conn Shrouded Header HDR 4 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 4POS 2.5MM VERT TIN

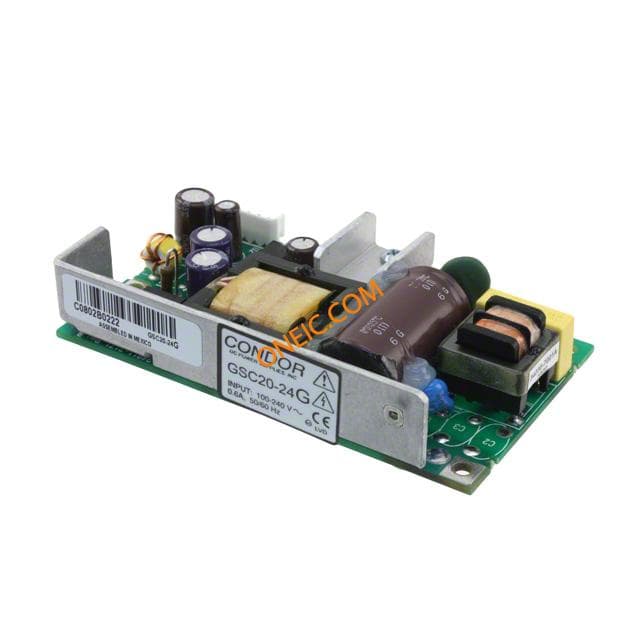

GSC20-24G
sl power electronics
AC/DC Power Supply Single-OUT 24V 0.85A 20W 8-Pin PWR SPLY SWITCHING 24V .85A POWERSUPPLY,SWITCHING;20W;90TO264VAC;24V;0.6A(MAX.);0.85A;0.75%
0008701039
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0008701040
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag
0039000160
molex
2.5 LOW PROFILE CRIMP RECEPTACLE Contact SKT Crimp ST Cable Mount Reel 2.5 LOW PROFILE CRIMP REC

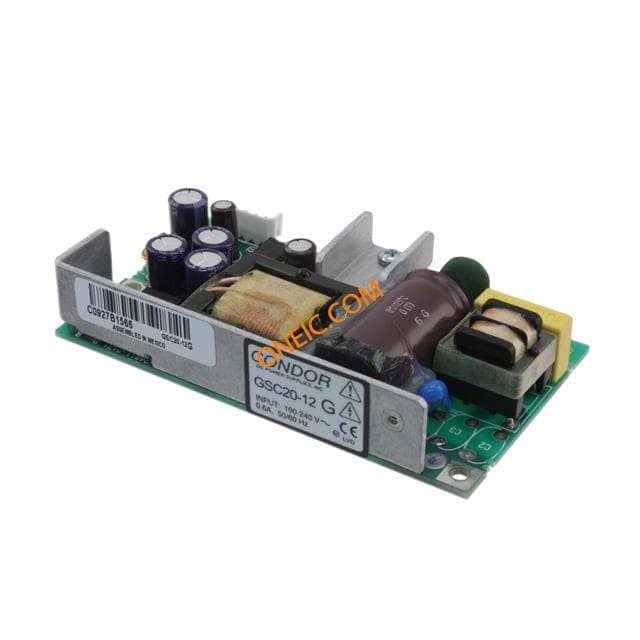

GSC20-12G
sl power electronics
AC/DC Power Supply Single-OUT 12V 1.7A 20W 8-Pin PWR SPLY SWITCHING 12V 1.7A SWITCHINGPOWERSUPPLY,20WATTS,12V@1.7A,3.5X2.0X0.71INCHES,ROHS

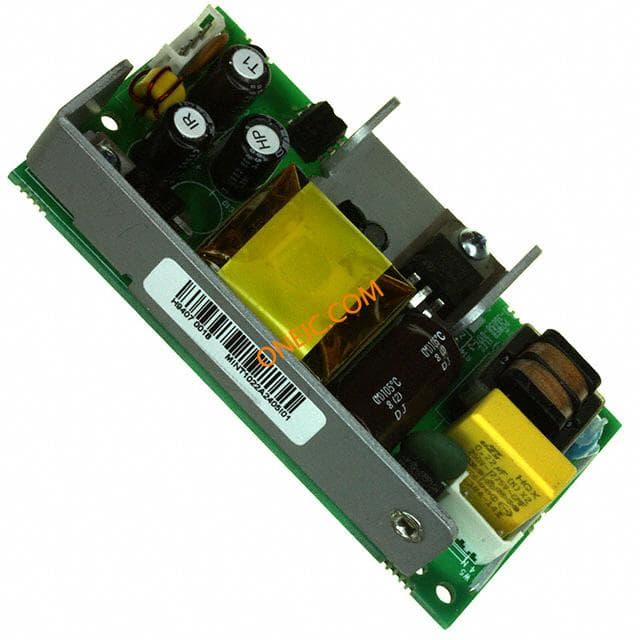

MINT1022A2405I01
Condor / SL Power
Linear and Switching Power Supplies 22W 24V @ .92A

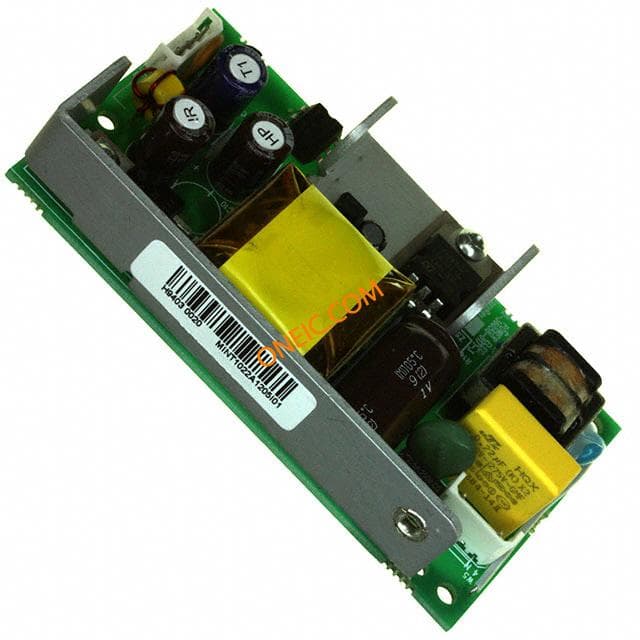

MINT1022A1205I01
Condor / SL Power
Linear and Switching Power Supplies 22W 12V @ 1.83A
MINT1022A1205I01
sl power electronics
AC/DC Power Supply Single-OUT 12V 1.83A 22W PWR SPLY MED SWITCHER 22W 12V PowerSupply;AC-DC;12V@1.83A;90-264VIn;OpenFrame;PnlMnt;Medical;MINT1022Series
MINT1022A2405I01
sl power electronics
AC/DC Power Supply Single-OUT 24V 0.92A 22W PWR SPLY MED SWITCHER 22W 24V PowerSupply;AC-DC;24V@0.92A;90-264VIn;OpenFrame;PnlMnt;Medical;MINT1022Series

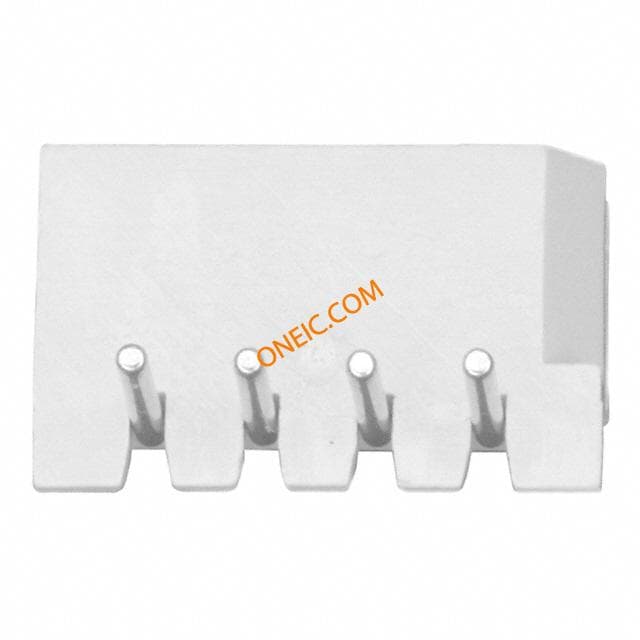

22-05-7045
