点击放大查看

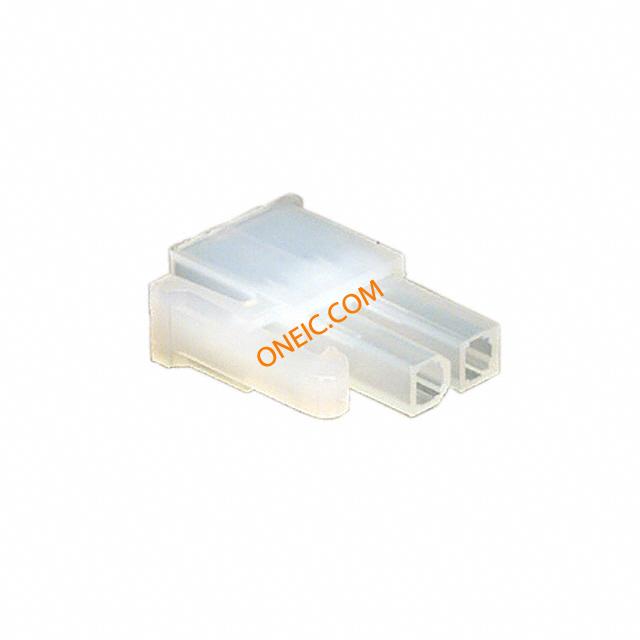

0039012020
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS DUAL |
| 分类 |
商业参数
| 交货时间 | 35 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 4.2 mm | 高度 | 14.1 mm |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.165" (4.20mm) | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 5.4 mm |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mini-Fit® Jr™ 5557 |
| 行业别名 | 39-01-2020, 39012020 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0039300020
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag Conn Wire to Board HDR 2 POS Solder RA Thru-Hole Bag CONN HEADER 2POS 4.2MM R/A TIN
0039301020
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 2 POS Solder RA Thru-Hole 2 Terminal 1 Port Bag CONN HEADER 2POS 4.2MM R/A TIN
794526-1
te connectivity / amp
Conn Power HDR 2 POS 4.2mm Solder RA Thru-Hole 2 Terminal 1 Port CONN HEADER R/A 2POS TIN PCB
0039291028
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag Conn Wire to Board HDR 2 POS Solder RA Thru-Hole Bag CONN HEADER 2POS 4.2MM R/A TIN
794507-1
te connectivity / amp
Conn Power HDR 2 POS 4.2mm Solder RA Thru-Hole 2 Terminal 1 Port CONN HEADER R/A 2POS TIN PCB
1586043-2
te connectivity / amp
Conn Power HDR 2 POS 4.2mm Solder RA Thru-Hole 2 Terminal 1 Port Pin & Socket Connectors RA HDR SCREW MNT 2P VAL-U-LOK Series Connector System CONN HEADER 2POS R/A W/FLANGE Conn Power HDR 2 POS 4.2mm Solder RA Thru-Hole 2 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,2POS,DUALROW,UL94V-2,SCREWMOUNT 2P VAL-U-LOK R/A HDR SCR MT V2
1-794302-1
te connectivity / amp
Conn Power HDR 2 POS 4.2mm Solder ST Thru-Hole 2 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN Pin & Socket Connectors 2PAMPDUAC VERT HDR ASSY 94V2 LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:ConnectorAMP-DUACConnector Type = Header0 Power Positions2 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
0039012021
molex
Conn Housing PL 2 POS 4.2mm Crimp ST Bag CONN PLUG 2POS PANEL MOUNT Conn Housing M 2 POS Crimp ST Panel Mount Bag
0039012026
molex
Conn Housing M 2 POS Crimp ST Panel Mount Bag CONN PLUG 2POS PANEL MOUNT
0039299027
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole Tray Conn Wire to Board HDR 2 POS Solder ST Thru-Hole Tray CONN HEADER 2POS 4.2MM VERT TIN
0039299023
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole Tray Conn Wire to Board HDR 2 POS Solder ST Thru-Hole Tray CONN HEADER 2POS 4.2MM VERT TIN

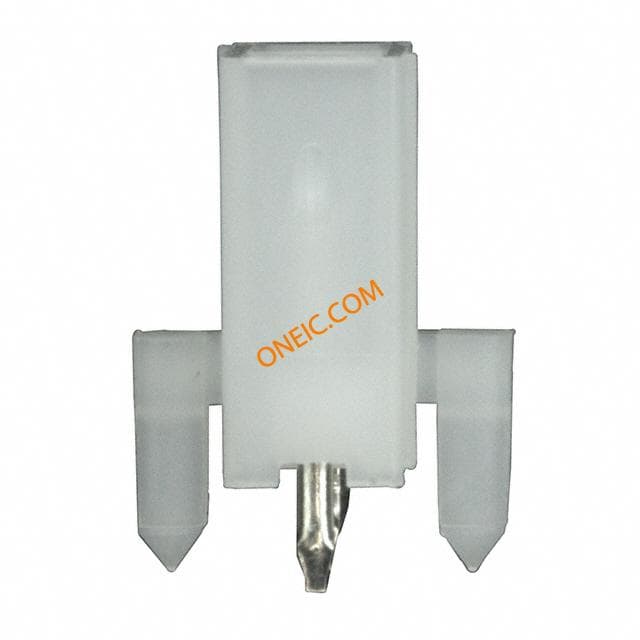

0039299022
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole Tray Conn Wire to Board HDR 2 POS Solder ST Thru-Hole Tray CONN HEADER 2POS 4.2MM VERT TIN
0039301021
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 2POS 4.2MM R/A GOLD
1-794540-1
te connectivity / amp
Conn Wire to Board HDR 2 POS Solder ST Thru-Hole 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN Conn Wire to Board HDR 2 POS Solder ST Thru-Hole Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
1-794543-1
te connectivity / amp
Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN

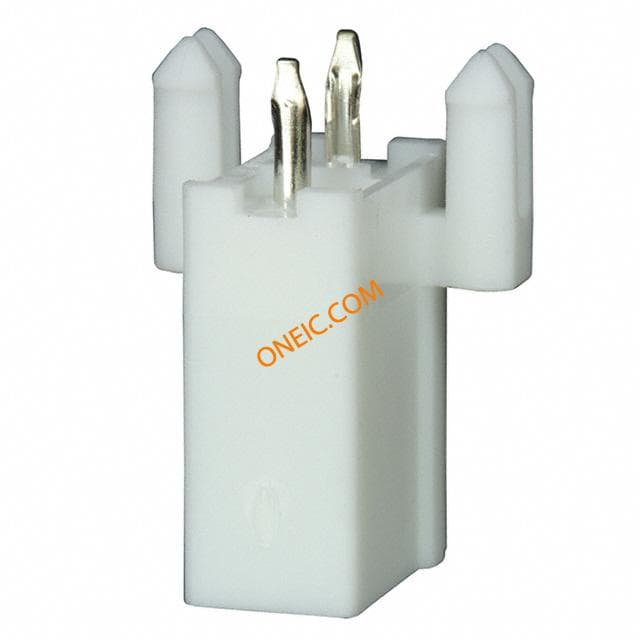

39-29-9026
molex
Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 2POS 4.2MM VERT TIN Molex 5566 Series 4.2mm Pitch 2 Way 2 Row Straight PCB Header, Solder Termination, 9A Headers & Wire Housings 2 CKT VERT HEADER Conn Power HDR 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Tray PLUG & SOCKET CONN, HEADER, 2POS, 4.2MM
1586493-2
TE Connectivity / AMP
ヘッダ & ワイヤハウジング 02P DUAC 94V0 W/PEG WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN
1-794349-1
TE Connectivity / AMP
ピン & ソケットコネクタ AMPDUAC PWR CONN 02P HDR ASSY LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN Pin & Socket Connectors AMPDUAC PWR CONN 02P HDR ASSY LF Conn Power HDR 2 POS 4.2mm Solder ST Thru-Hole 2 Terminal 1 Port Conn Power HDR 2 POS 4.2mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
1586495-2
TE Connectivity / AMP
Headers & Wire Housings 02P DUAC 94V0 W0/PEG WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 2POS VERT PCB TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC/PL0 Power Positions2 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

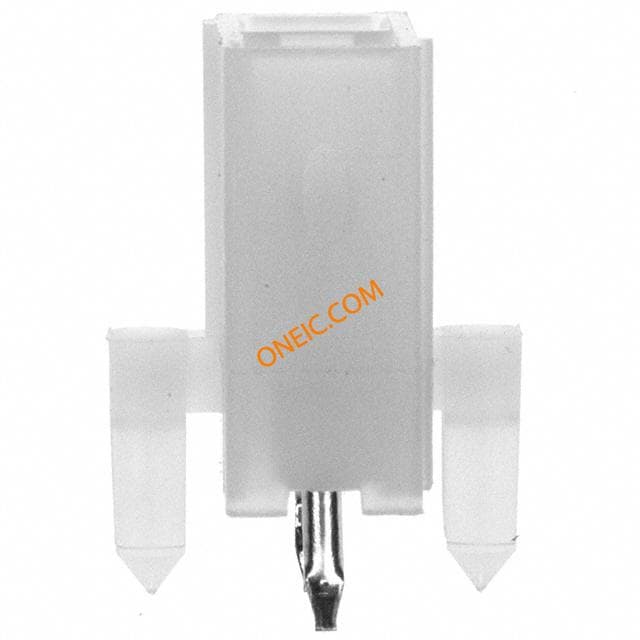

39-30-6027
