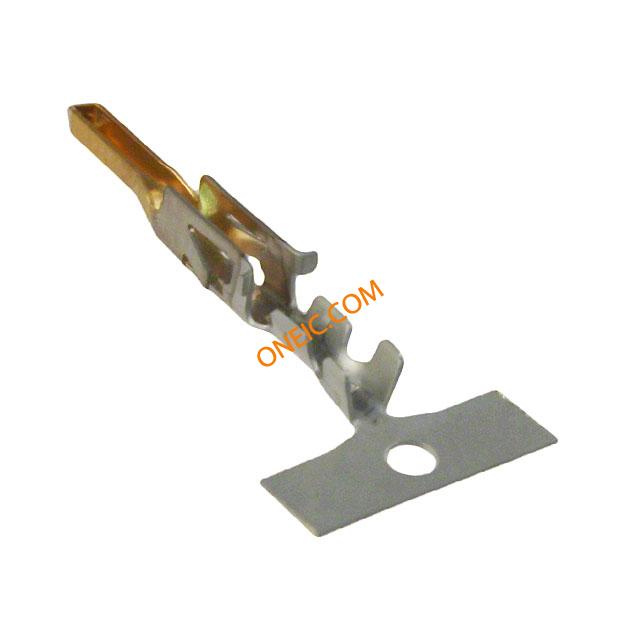

0039000432
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN PIN 22-28AWG CRIMP GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel |
| 分类 |
商业参数
| 其他名称 | WM2834CT | 标准包装数量 | 6,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最小供电电压 | 600VDC/600VAC |
机械参数
| 深度 | 2.3 | 间距 | Not Required mm |
| 高度 | 2.3 | 包装方式 | Reel |
| 导线线规 | 22-28 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 16.8 | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
环境参数
| 工作温度 | -40C to 105C | ||
