点击放大查看

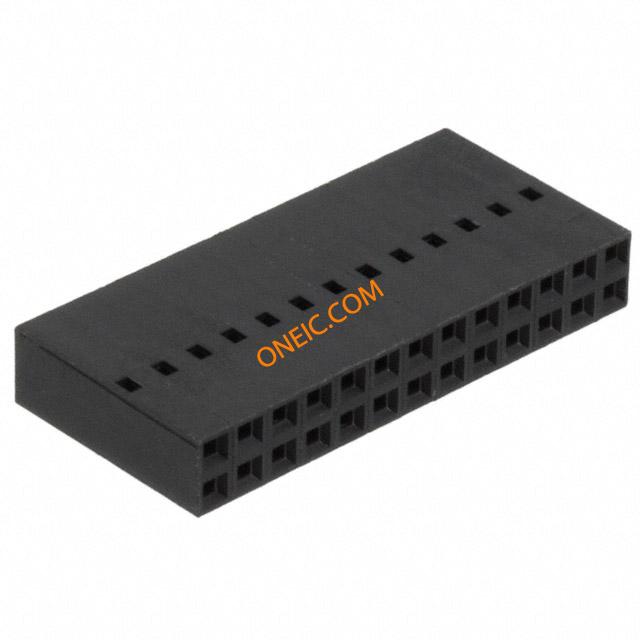

0022552261
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Bag CONN RCPT HSNG 26POS DL 2.54MM |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 5.05 mm |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 壳体材料 | Polyester |
| 总长度 | 32.99 mm | 触点数 | 26 |
| 接触件端接 | Crimp | 位数 | 26 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 22-55-2261, 22552261 |
环境参数
| 工作温度 | -40C to 105C | ||
