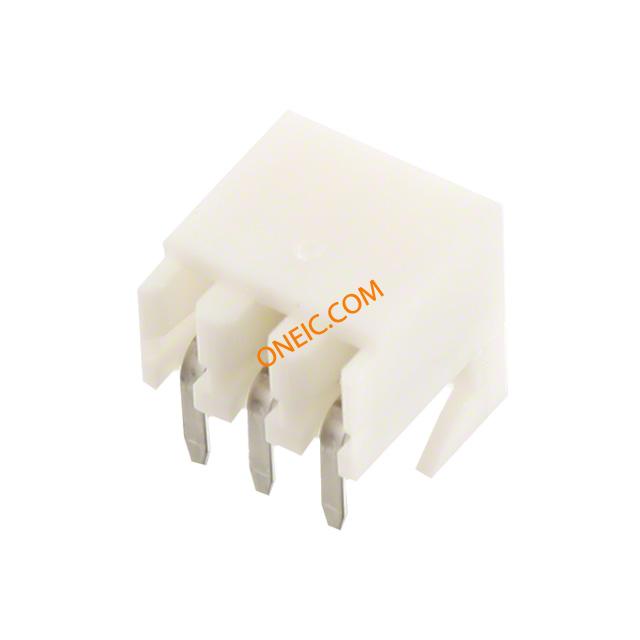

点击放大查看
0022162030
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 3 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 3POS .100 R/A PCB |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 2.5/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 7.9 |
| 间距 | 0.100" (2.54mm) | 高度 | 4.7 |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 7.52 | 触点数 | 3 |
| 位数 | 3 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 加载位置数 | All | ||
环境参数
| 防护等级 | - | 工作温度 | -40°C ~ 80°C |
