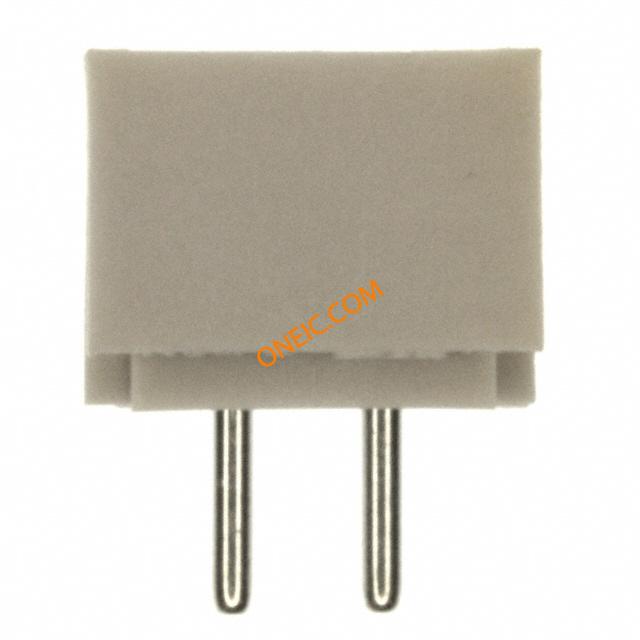

0022035025
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 2POS 2.5MM VERT TIN |
| 分类 |
商业参数
| 交货时间 | 54 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3/Contact A |
| 最小供电电压 | 250V | ||
机械参数
| 深度 | 4.9 mm | 间距 | 0.098" (2.50mm) |
| 高度 | 5.9 mm | 包装方式 | Bag |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon 6/6 | 总长度 | 7.4 mm |
| 板面高度 | 0.138" (3.50mm) | 触点数 | 1 |
| 位数 | 2 | 接触长度 - 配合 | 0.138" (3.50mm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | SPOX™ 5267 | 行业别名 | 22-03-5025, 22035025 |
| 输出配置 | Through Hole | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0050375023
molex
Conn Housing RCP 2 POS 2.5mm Crimp ST Bag Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM SHROUD

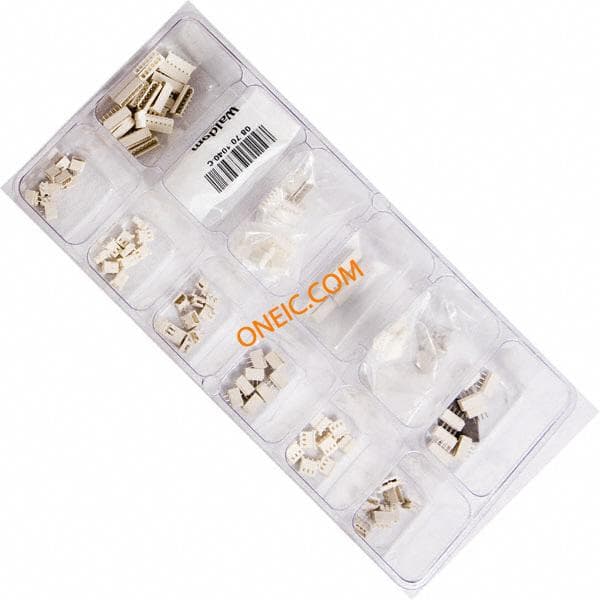

76650-0167
