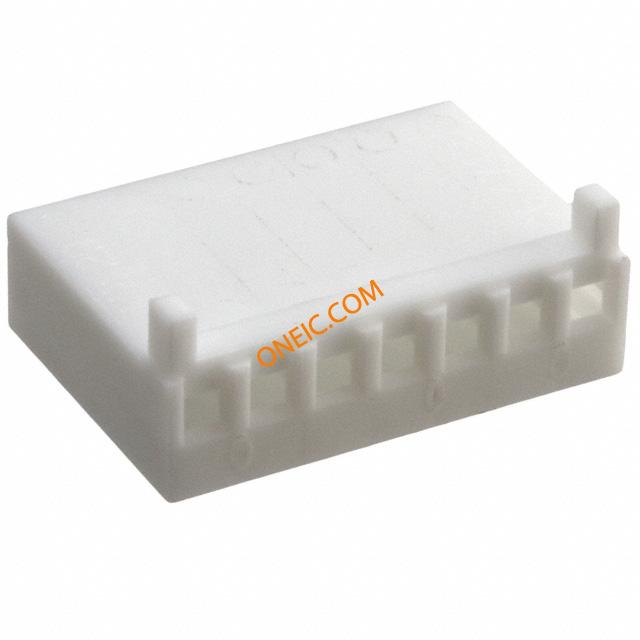

0022012075
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Bag 2.54MM KK CRP TRM HSG IL 7CKT |
| 分类 |
商业参数
| 交货时间 | 22 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 4/Contact A | 最小输入电压 | 250V |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Natural | 深度 | 12.7 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 4.83 mm |
| 包装方式 | Bag | 导线线规 | 22-28 |
| 触头类型 | Non Gendered | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 壳体材料 | Polyamide 66/6 | 总长度 | 18.24 mm |
| 触点数 | 7 | 接触件端接 | Crimp |
| 位数 | 7 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 22-01-2075, 22012075 |
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0008550111
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG GOLD 0008550111
0008650106
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM CRIMP 22-30AWG GOLD
0008550112
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 22-30AWG GOLD

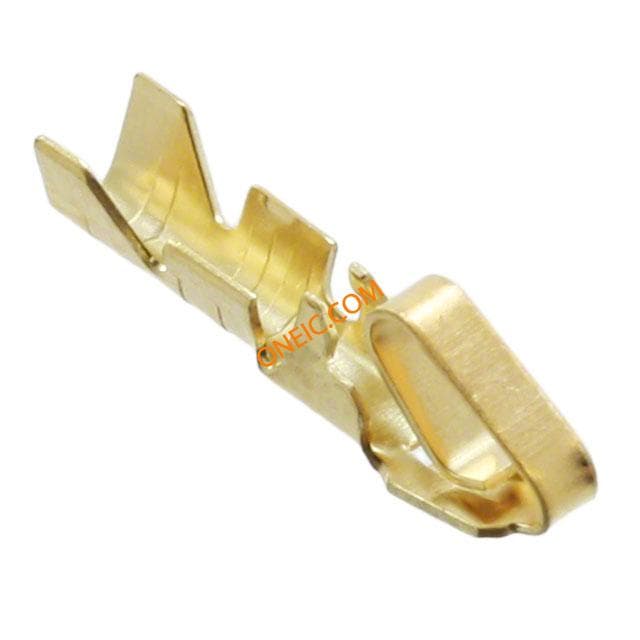

0008560115
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG GOLD 0008560115

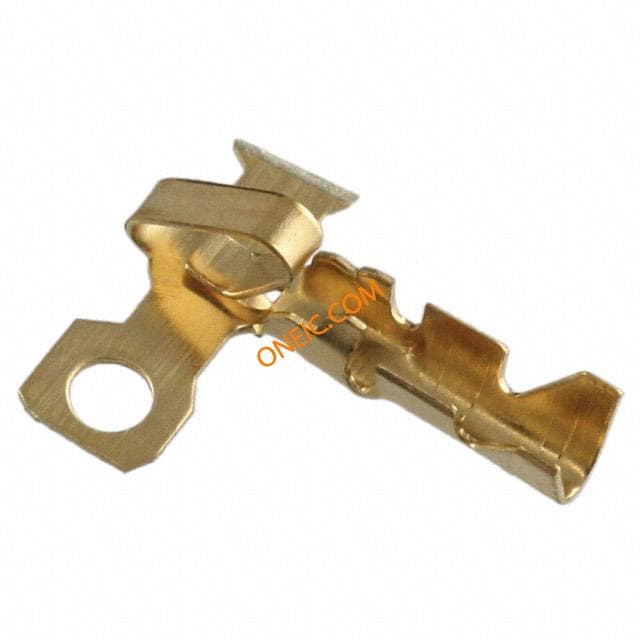

0008560120
Molex
Contact SKT Crimp ST Cable Mount Reel TERM RCPT CRIMP 22-30AWG GOLD 0008560120
0008500031
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN
0008520105
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN
0008520106
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG TIN

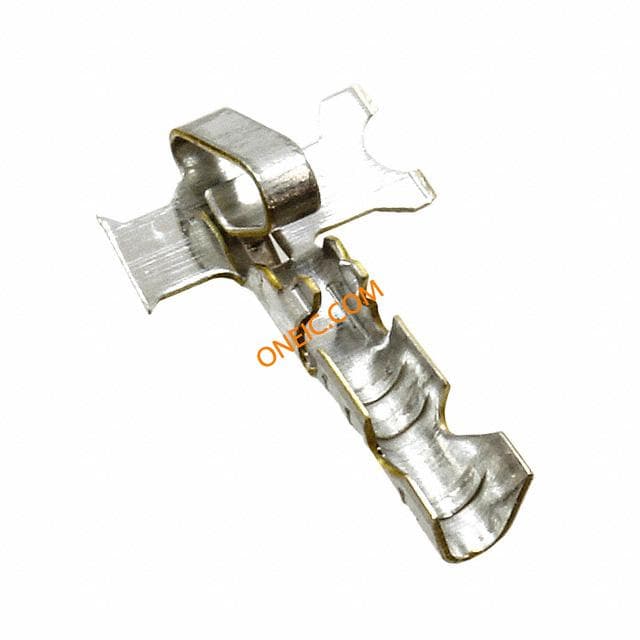

0008500136
Molex, LLC
. 0008500136 - Non-Gendered Contact Tin 22-30 AWG Crimp from Molex. from now!
0008500135
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 22-30AWG TIN
0008500032
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

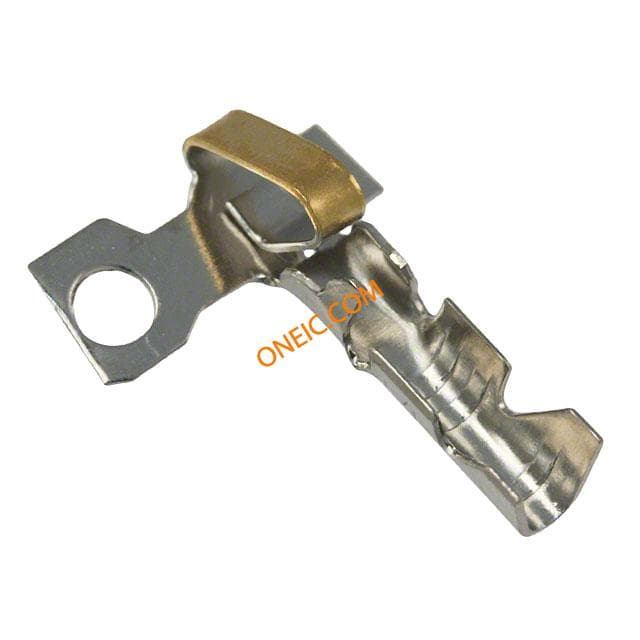

0008550110
