点击放大查看

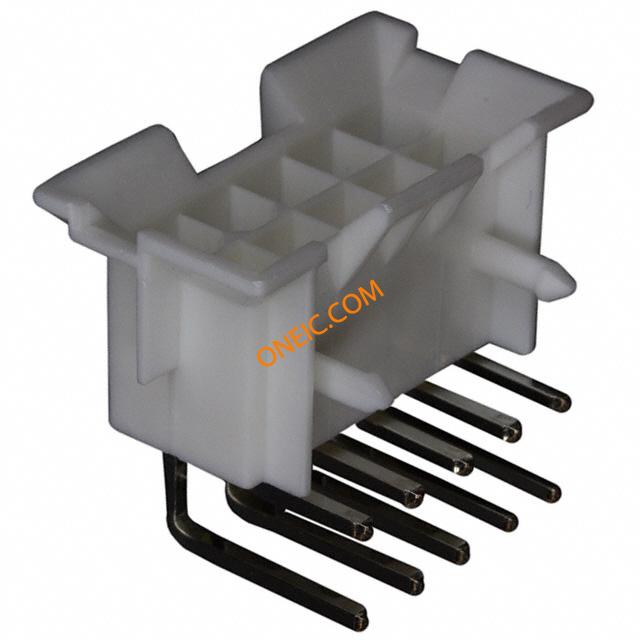

0015249104
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 10POS 4.2MM R/A TIN |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Power |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact | 最小输入电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 20.7 |
| 间距 | 4.2 mm | 高度 | 15 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon 6/6 |
| 总长度 | 27.6 | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Lock | 端口数 | 1 |
| 行业别名 | 15-24-9104, 15249104 | 加载位置数 | All |
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
0424741041
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
0039012105
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL Conn Housing F 10 POS 4.2mm Crimp ST Cable Mount Bag
0039012100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL
15-24-7100
molex
Conn Wire to Board RCP 10 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 10P DUAL ROW Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray PLUG & SOCKET CONNECTOR, RCPT 6POS 4.2MM MINI FIT BMI REC HEADER
15-06-0101
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,10w Headers & Wire Housings RECPT DUAL ROW 10P w/panel mount ears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
0015247101
Molex
Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 10POS 4.2MM VERT TIN

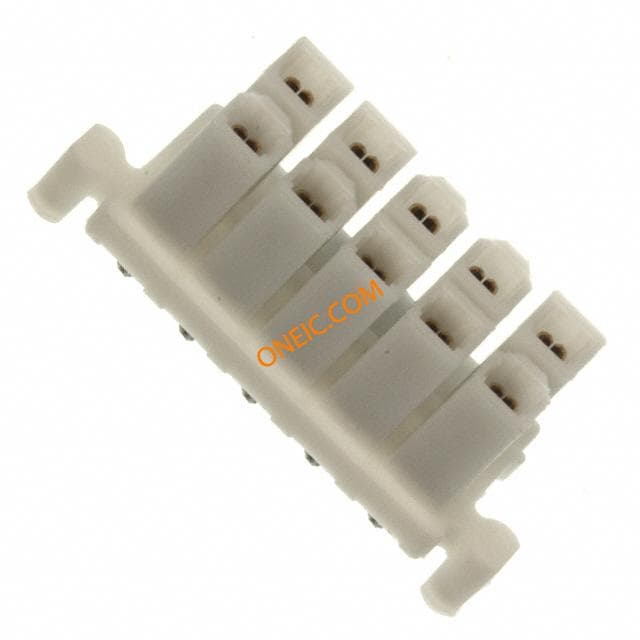

15-24-7103
