0014567052
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 5POS 2.54MM 22AWG TIN |
| 分类 |
商业参数
| 标准包装数量 | 1,260 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 250VDC|250VAC | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.58 mm |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 22 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 12.67 mm | 电缆端接方式 | IDC |
| 触点数 | 5 | 位数 | 5 |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0701070074
Molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 5POS

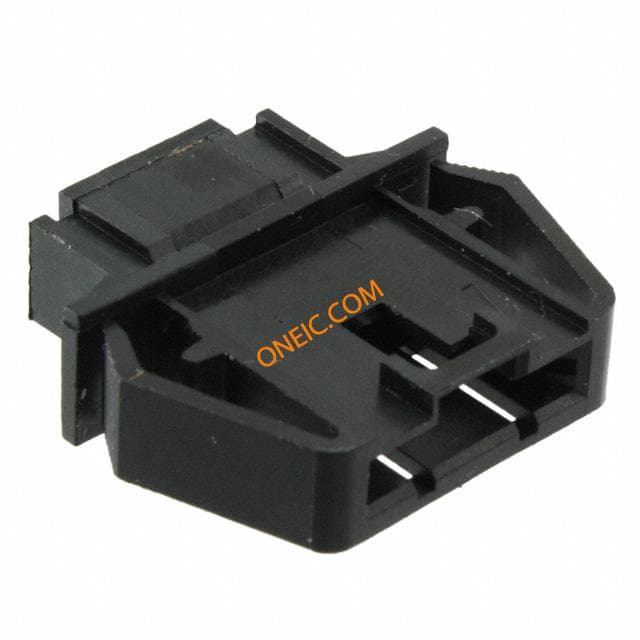

0050650205
