点击放大查看

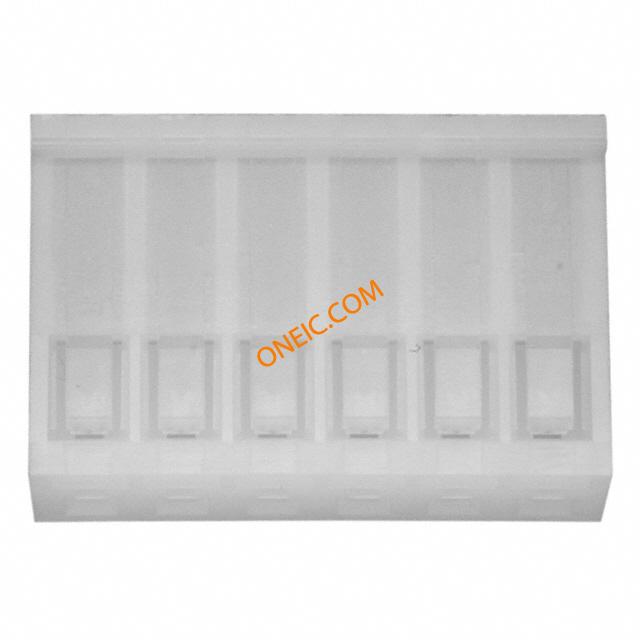

0009501061
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 6 POS 3.96mm Crimp ST Cable Mount Bag CONN RCPT HOUSING 6POS 3.96MM RECEPTACLE, 6WAY Plug; wire-board; female; PIN:6; w/o terminals; 3.96mm; for cable |
| 分类 |
商业参数
| 交货时间 | 49 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - SPOX 5195 Series | 最大额定电流 | 7/Contact |
| 最小输入电压 | 250VDC|250VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 16 |
| 间距 | 0.156" (3.96mm) | 高度 | 8.85 |
| 重量 | 0.001 | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 3.96mm |
| 外壳颜色 | Off White | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon 66 | 总长度 | 24.9 |
| 包装数量 | 10 | 连接器 - 电缆 | plug |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器安装特征 | 1x6 |
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | F |
| 适配器系列 | SPOX | 单元数量 | 1 |
| 行业别名 | 09-50-1061, 09501061, 9501061 | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
0008701031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Reel

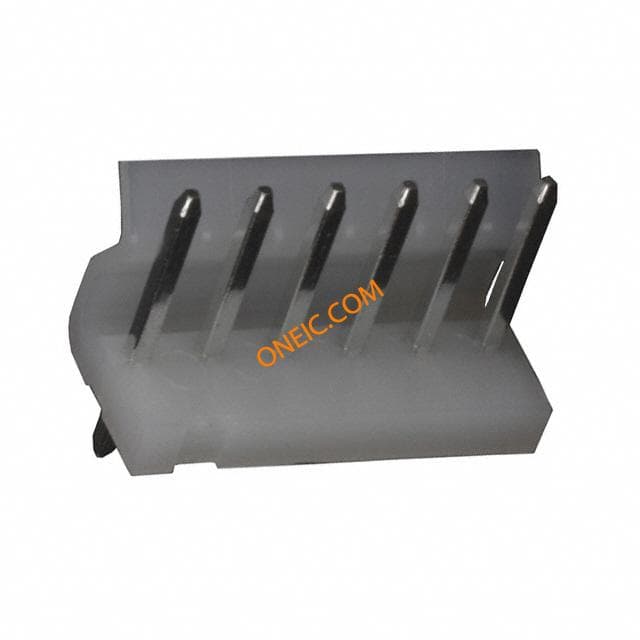

0009652068
