点击放大查看

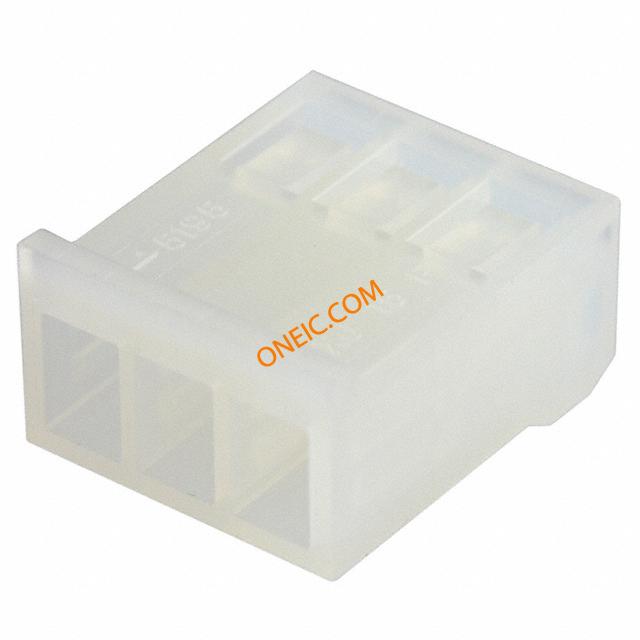

0009501031
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 3 POS 3.96mm Crimp ST Bag CONN RCPT HOUSING 3POS 3.96MM |
| 分类 |
商业参数
| 交货时间 | 49 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 250V | 最小供电电压 | 250V |
| 连接器类型 - 电压输入 | Crimp | ||

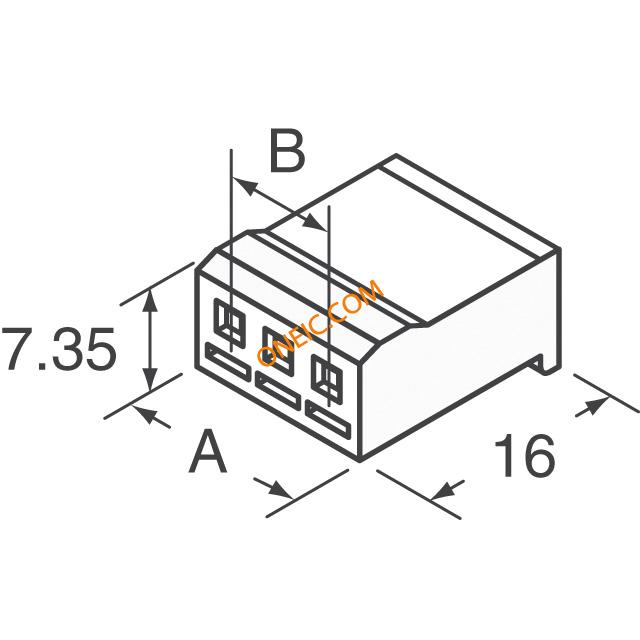

机械参数
| 颜色 | Natural | 深度 | 16 mm |
| 间距 | 3.96 mm | 高度 | 8.85 mm |
| 包装方式 | Bag | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 外壳颜色 | Off White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon 66 | 总长度 | 13.02 mm |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SPOX™ 5195 |
| 行业别名 | 09-50-1031, 09501031, 9501031 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0008701031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Reel
0009652038
molex
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag 3CKT 3.96MM WFAS W/LOCK CONN HEADER 3POS 3.96MM VERT TIN Connetor
08-70-1028
Molex
Headers & Wire Housings 22-28 CRIMP BULK CONN TERM FEMALE 22-28AWG TIN

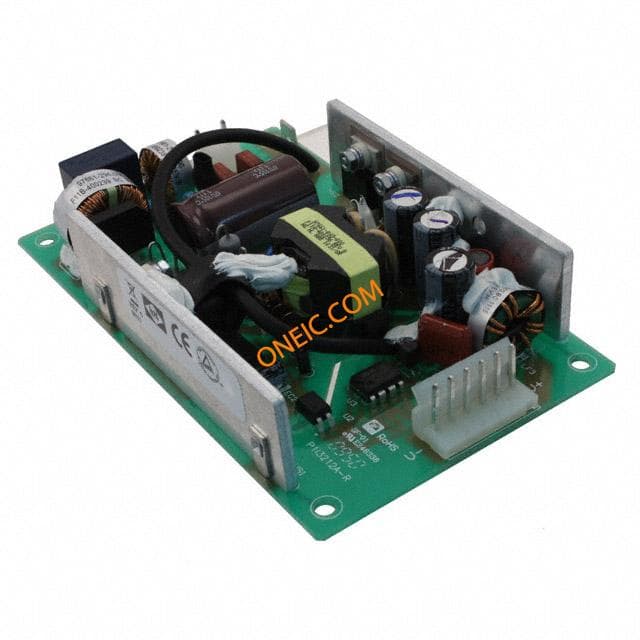

MS4012F
