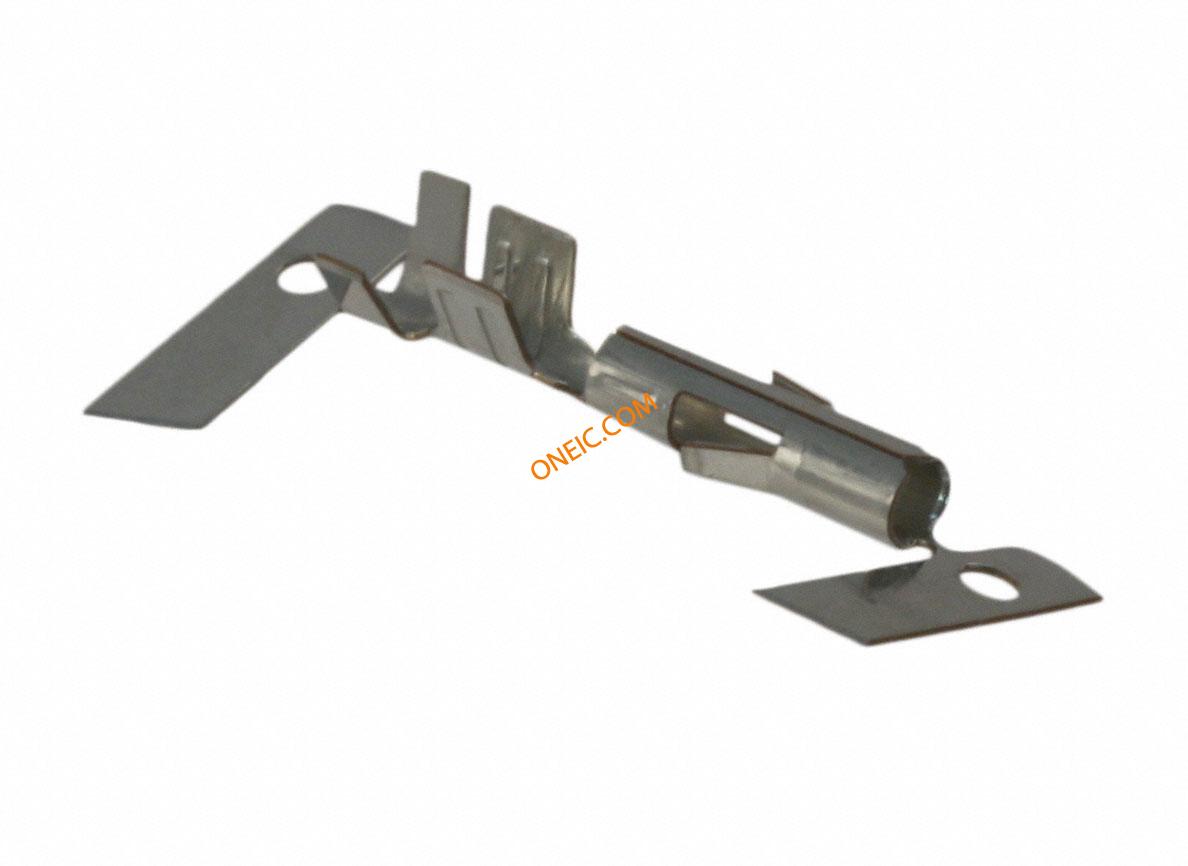

0002081201
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-20AWG TIN 0002081201 |
| 分类 |
商业参数
| 交货时间 | 37 Days | 其他名称 | WM2293CT |
| 子类别 | Connector Contact | 标准包装数量 | 5,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 包装方式 | Reel | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin Over Copper | 触头材料 | Phosphor Bronze |
| 接触件端接 | Crimp | 接触镀层厚度 | 35µin (0.90µm) |
产品信息
| 连接器性别 | SKT | 行业别名 | 02-08-1201, 02081201, 2081201 |
