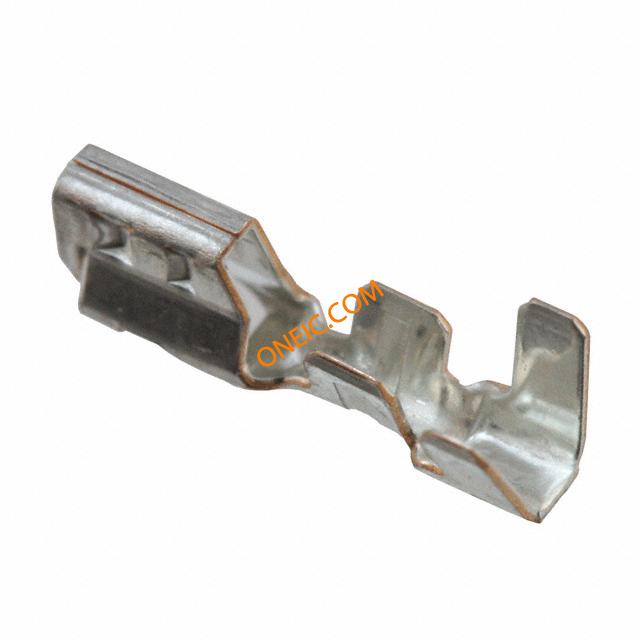

0503518100
| 制造商 | Molex, LLC |
| 描述 | . 0503518100 - Socket Contact Tin 22-28 AWG Crimp from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 深度 | 2.54 mm | 间距 | Not Required mm |
| 高度 | 2.45 mm | 包装方式 | Bag |
| 导线线规 | 22-28 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 7.9 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 35µin (0.90µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0511630500
molex
Conn Housing F 5 POS 2.5mm Crimp ST Cable Mount Bag 2.5 W/B REC HSG
0511631300
molex
Conn Housing RCP 13 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511630900
Molex, LLC
. 0511630900 - 9 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) from Molex. from now!
0511630700
molex
Conn Housing RCP 7 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511630200
Molex, LLC
. 0511630200 - 2 Position Rectangular Housing Connector Receptacle Natural 0.098" (2.50mm) from Molex. from now!
0573555000
molex
APPLICATOR FOR M211A BENCH PRESS, 14-18 AWG, FOR 50637/50638/59319/59320 CRIMP HANDTOOL FOR 50637/50638
0511631100
molex
Conn Housing RCP 11 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511630600
molex
Conn Housing RCP 6 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511631400
molex
Conn Housing RCP 14 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511630400
molex
Conn Housing RCP 4 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511631500
molex
Conn Housing RCP 15 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG
0511630800
molex
Conn Housing RCP 8 POS 2.5mm Crimp ST Bag 2.5 W/B REC HSG

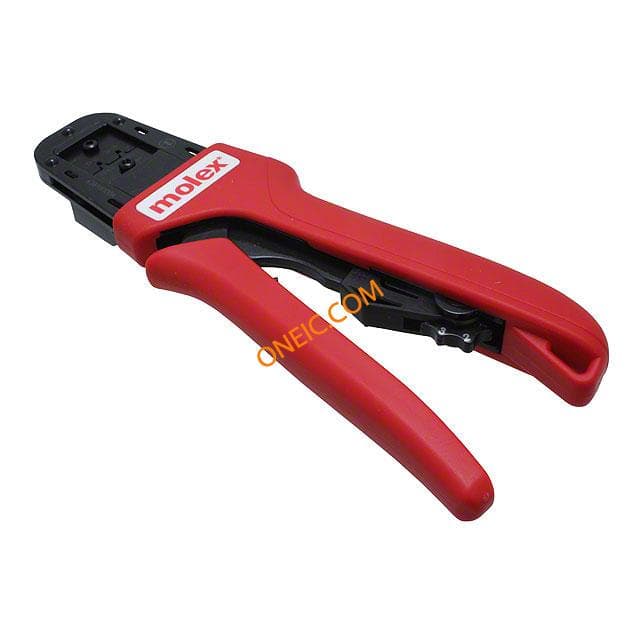

0638118100
