点击放大查看

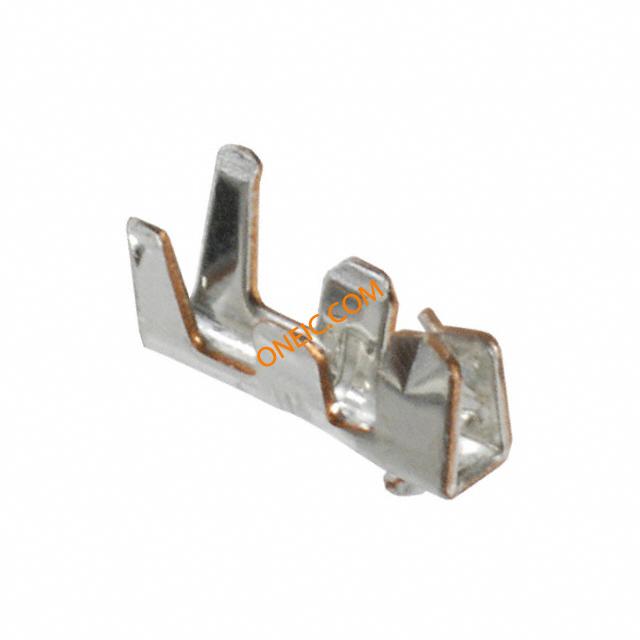

0500798100
| 制造商 | Molex, LLC |
| 描述 | . 0500798100 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 1 A |
| 最小供电电压 | 125VAC | ||
机械参数
| 深度 | 1.35 mm | 间距 | Not Required mm |
| 高度 | 1.62 mm | 重量 | 0.02 g |
| 包装方式 | Bag | 导线线规 | 26-28 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 1.25mm |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 3.3 mm |
| 包装数量 | 1000 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 横截面形状 | 0.03...0.13mm2 | 接触镀层厚度 | 35µin (0.90µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1000 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | PicoBlade |
| 单元数量 | 1 | 行业别名 | 50079-8100, 500798100 |
| 工具类型/特性 | MX-63819-0300, MX-63819-0400 | 适用产品/相关产品 | 0500798000 |
