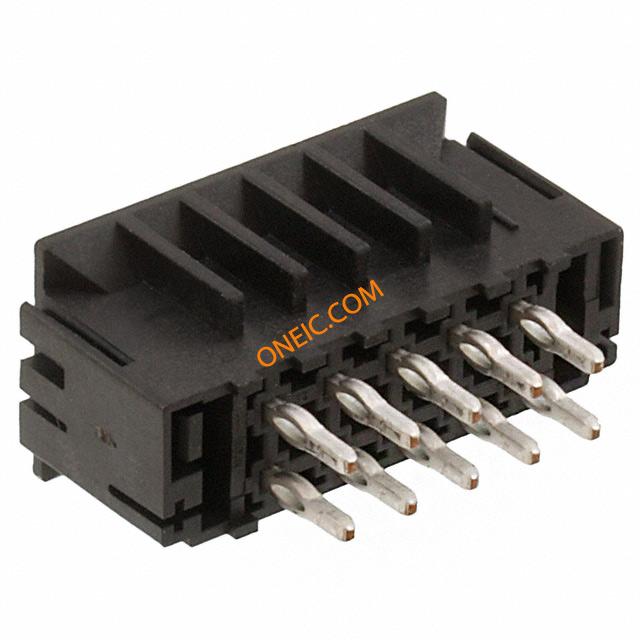

0438790058
| 制造商 | Molex, LLC |
| 描述 | . 0438790058 - Connector Header Through Hole 10 position 0.165" (4.20mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 400 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600VAC | 最大额定电流 | 8/Contact |
机械参数
| 颜色 | Black | 深度 | 15 |
| 间距 | 0.165" (4.20mm) | 高度 | 14.9 |
| 长度 | 31.41 | 端部样式 | Solder |
| 包装方式 | Tray | 方向 | Straight |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Press-Fit |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Latch Holder | 排数 | 2 |
| 触头材料 | Brass | 触点数 | 10 |
| 位数 | 10 | 绝缘材料 - 材质 | Thermoplastic |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 端口数 | 1 | 其他规格 | 4.2 |
| 装配配置 | Through Hole | 加载位置数 | All |
环境参数
| 工作温度 | 105 | ||
