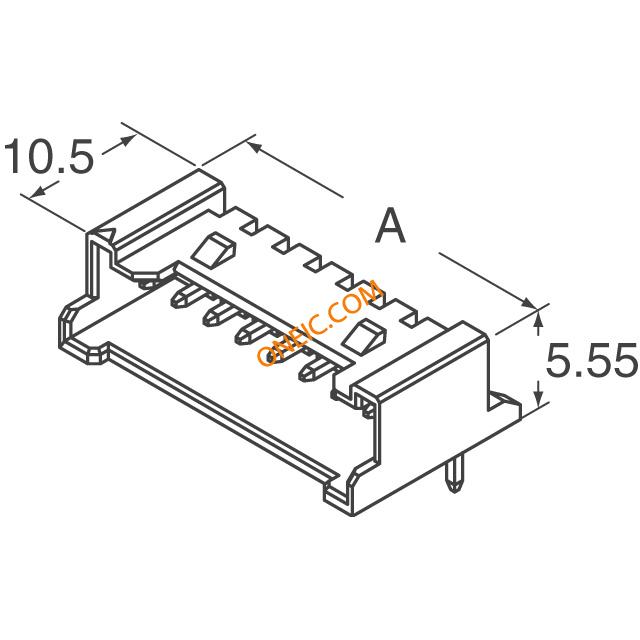

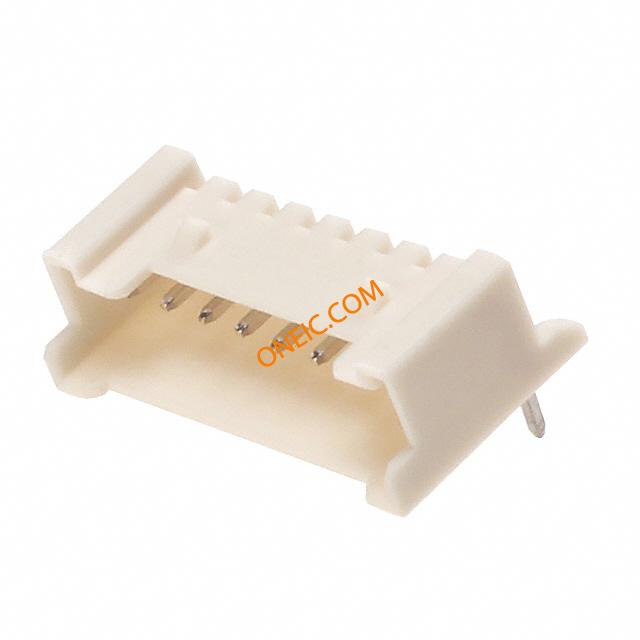

0353630860
| 制造商 | Molex, LLC |
| 描述 | . 0353630860 - Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数
| 颜色 | Natural | 深度 | 8.55 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 5.5 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | 18.3 mm |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.145" (3.70mm) | 接触镀层厚度 | 78.7µin (2.00µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | ||
