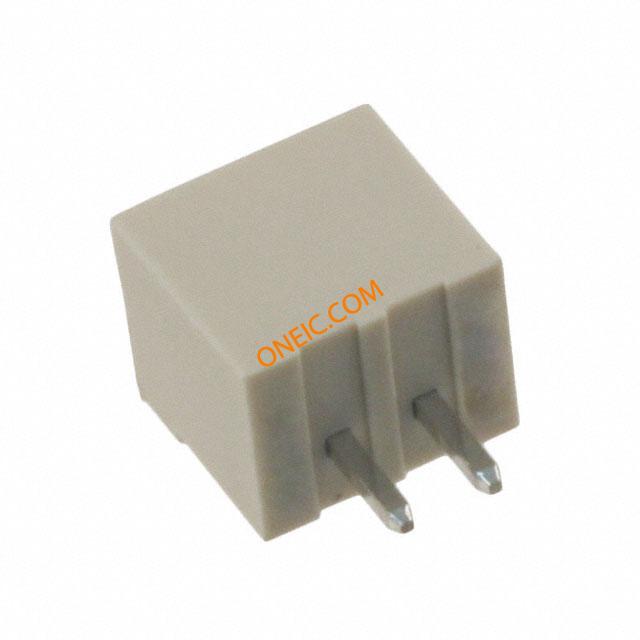

0353120260
| 制造商 | Molex, LLC |
| 描述 | . 0353120260 - Connector Header Through Hole 2 position 0.098" (2.50mm) from Molex. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Natural | 深度 | 6.5 |
| 间距 | 0.098" (2.50mm) | 高度 | 7 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 7.46 |
| 触点数 | 2 | 位数 | 2 |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
