点击放大查看

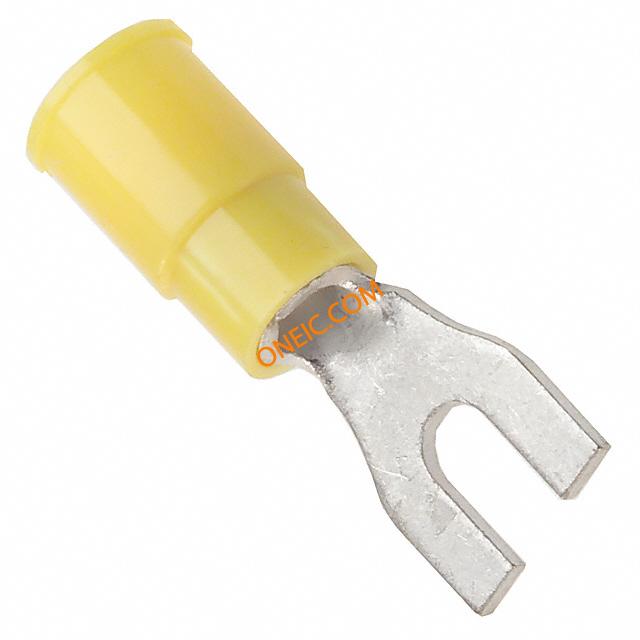

0191440037
| 制造商 | Molex, LLC |
| 描述 | CONN TONGUE SPADE #6 10-12AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Yellow | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 Stud | 端子类型 | Standard |
| 接触镀层 | Electro-Tin | 触头材料 | Copper |
| 总长度 | 1.103" (28.02mm) | 绝缘直径 | 0.250" (6.35mm) |
| 外缘宽度 | 0.375" (9.53mm) | 端接长度 | 0.550" (13.97mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 0.146" (3.71mm) |
| 环中心到端接长度 | 0.301" (7.65mm) | ||
文档与媒体
PDF 文档
