点击放大查看

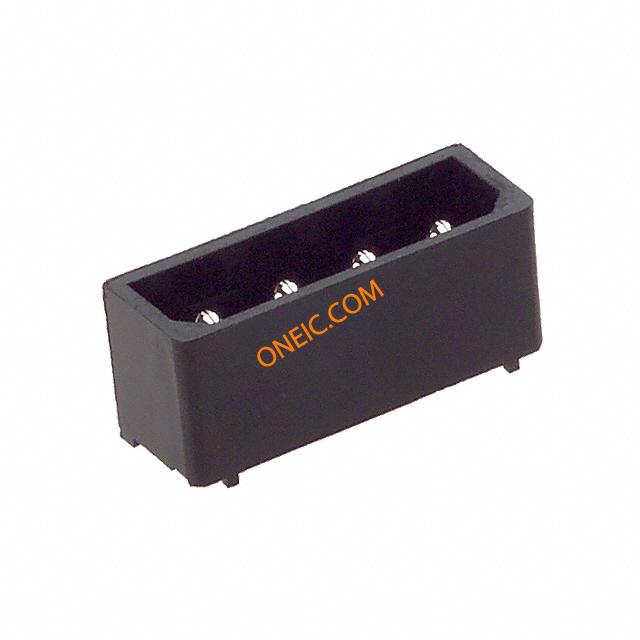

0015244557
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS .200 VERT TIN |
| 分类 |
商业参数
| 标准包装数量 | 2,520 | ||
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 位数 | 4 | 接触长度 - 配合 | 0.200" (5.08mm) |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 加载位置数 | All | ||
