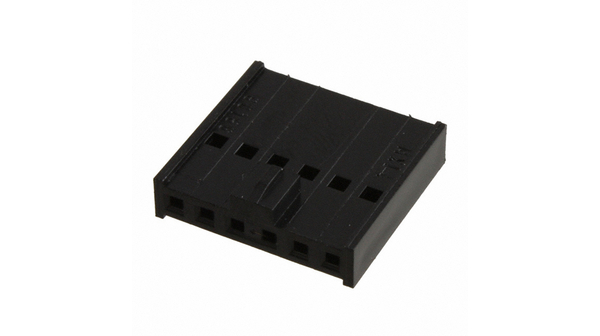

90156-0146
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 6POS .100" CRIMP 6 way single row locking housing Conn Housing RCP 6 POS 2.54mm Crimp ST Bag HOUSING FRICTION LOCK, 6WAY Crimp housing 1 x 6P, 90156-0146, Molex Molex C-GRID III 系列 2.54mm 节距 6 路 直 母 压接连接器外壳 |
| 分类 |
合规参数
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90156 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 15.24mm | 间距 | 2.54mm |
| 宽度 | 5.35mm | 长度 | 16.3mm |
| 重量 | 0.05 | 材料（通用） | :Polyphenylene Oxide UL94V-1 |
| 端接方式 | :Crimp | 安装类型 | Straight |
| 接触镀层 | :- | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PPO |
| 触点数 | 6 | 接触件端接 | :Crimp |
| 第一连接器安装类型 | :PC Board | ||
产品信息
| 连接器性别 | Female | 系列 | 90156 |
| CAD图纸 | 3D CAD Model | 适用产品/相关产品 | C-Grid III Connector |
环境参数
| 工作温度 | :105°C | ||
