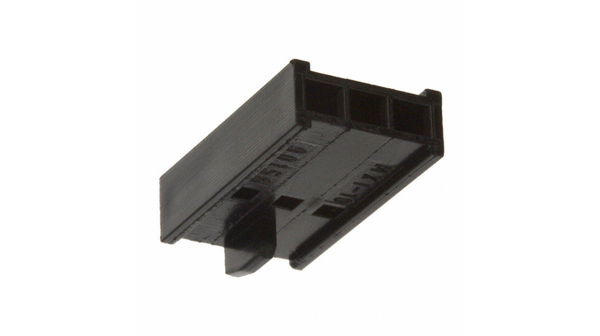

90156-0143
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 3POS .100" CRIMP 3 way single row locking housing Headers & Wire Housings CRIMP HOUSING 3P C-GRID III single Conn Housing RCP 3 POS 2.54mm Crimp ST Bag HOUSING FRICTION LOCK, 3WAY Crimp housing 1 x 3P, 90156-0143, Molex Molex C-GRID III 系列 2.54mm 节距 3 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901560143 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL |
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90156 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 3 A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 15.24mm | 间距 | 2.54mm |
| 宽度 | 5.35mm | 长度 | 8.68mm |
| 重量 | 0.002 | 材料（通用） | :Polyphenylene Oxide UL94V-1 |
| 端接方式 | :Crimp | 安装类型 | Straight |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | :Crimp | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Female | 系列 | 90156 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | C-Grid III Connector | ||
环境参数
| 工作温度 | :105°C | ||
