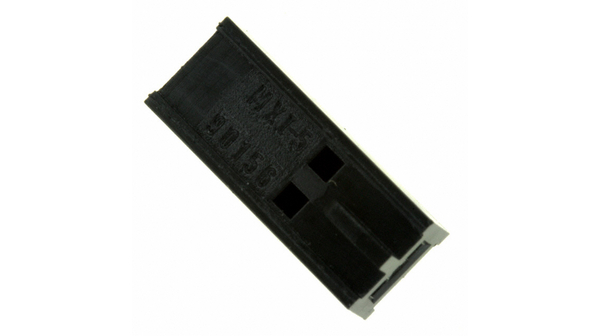

90156-0142
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2POS .100" CRIMP 2 way single row locking housing Headers & Wire Housings 2P HOUSING Conn Housing RCP 2 POS 2.54mm Crimp ST Bag HOUSING, RECEPTACLE, FRICTION LOCK, 2WAY C-GRID CRP CONN HSG SR FL POLZ 2CKT Crimp housing 1 x 2P, 90156-0142, Molex Molex C-GRID III 系列 2.54mm 节距 2 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901560142 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 9000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90156 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 3 A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 15.24mm | 间距 | 2.54mm |
| 宽度 | 5.35mm | 长度 | 6.14mm |
| 重量 | 0.021 | 材料（通用） | :Polyphenylene Oxide UL94V-1 |
| 安装类型 | Straight | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PPO |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 接触件端接 | :Crimp |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Female | 系列 | 90156 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | C-Grid III Connector | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
