点击放大查看

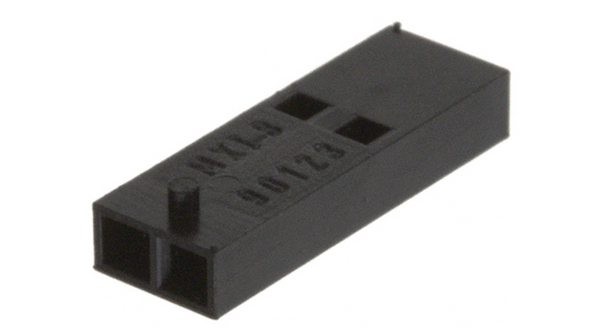

90123-0102
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2POS .100" SINGLE 2 way single row housing Headers & Wire Housings 2P SOCKET C-GRID III Conn Housing RCP 2 POS 2.54mm Crimp ST Bag HOUSING, CRIMP, RECEPTACLE, 2.54MM, 2WAY Crimp housing 1 x 2P, 90123-0102, Molex Molex C-GRID III 系列 2.54mm 节距 2 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230102 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | :350V | 接触电阻 | :20mohm |
| 最大额定电流 | :3A | 绝缘电阻 | :5000Mohm |
机械参数
| 深度 | 15.24mm | 间距 | 2.54mm |
| 宽度 | 3.43mm | 长度 | 5.08mm |
| 重量 | 0.011 | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 位数 | :2 | ||
产品信息
| 连接器性别 | Female | 系列 | 90123 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | :105°C | ||
