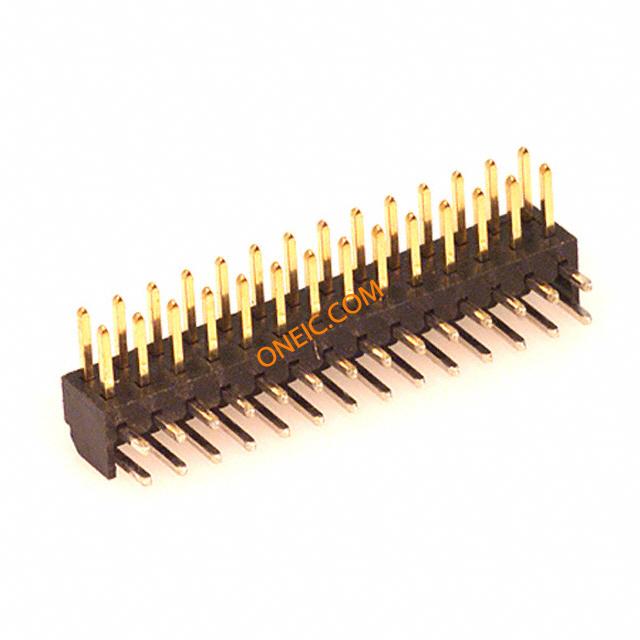

87760-2816
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 28POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 28 CKT. R/A Selective Gold 2.00mm Pitch Milli-Grid™ Header, Right Angle, Through Hole, 28 Circuits, 0.38µm Gold (Au) Selective Plating, Tray, Lead-Free |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877602816 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 28 |
| 位数 | 28 | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded | 系列 | 87760 |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
0791091063
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 28CKT SMD
0791091013
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 28CKT SMD
0791077263
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 28CKT
0791091213
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 28CKT
0791081063
molex
Conn FFC/FPC Connector RCP 28 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 28CKT
0791098463
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 28CKT
0791077213
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 28CKT
0791098613
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 28CKT

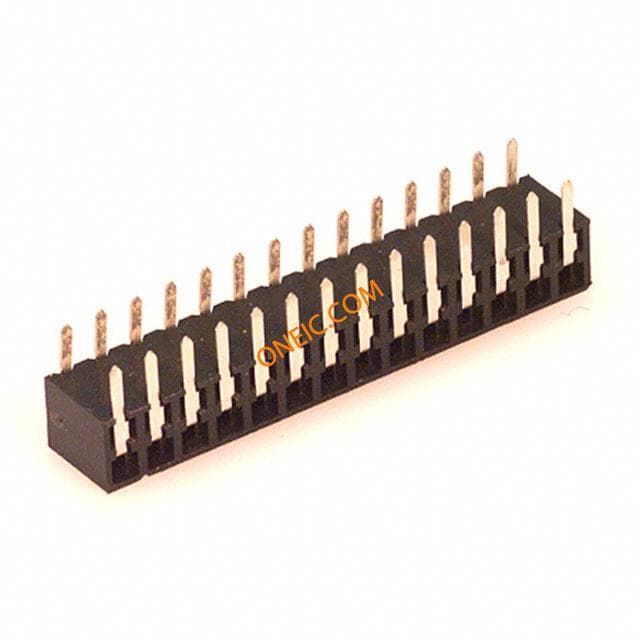

87264-2852
molex
Conn Socket Strip RCP 28 POS 2mm Solder RA Thru-Hole Tube CONN RECEPT 2MM 28POS SIDE ENTRY Headers & Wire Housings 2MM RECEPT. 28 CKT Side Entry

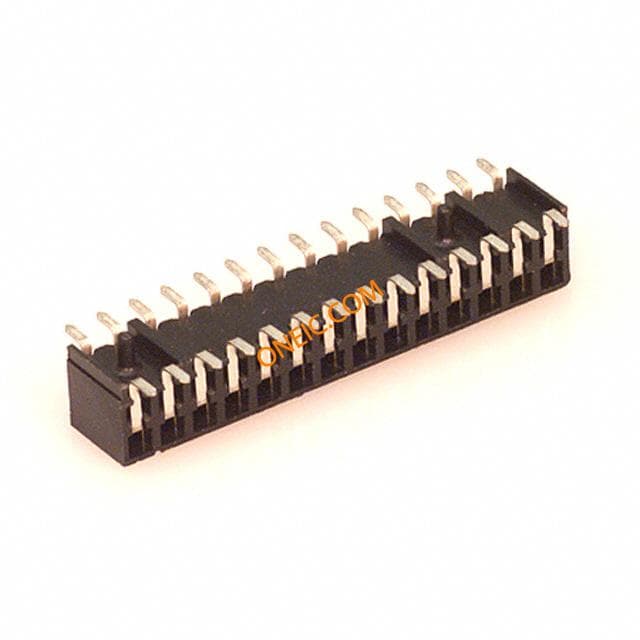

87368-2824
molex
Conn Socket Strip RCP 28 POS 2mm Solder RA SMD Tube CONN RECEPT 28POS 2MM SMD GOLD Headers & Wire Housings 2MM RECEPT. 28 CKT Side Entry

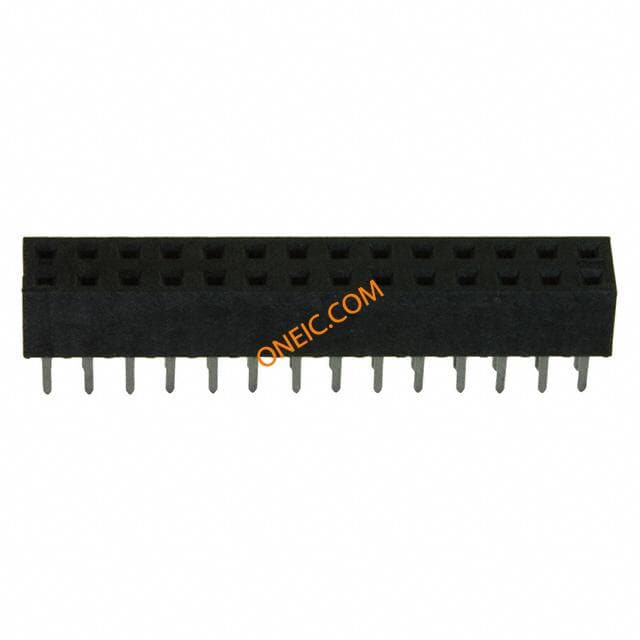

79107-7013
molex
Conn Socket Strip RCP 28 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 28POS 2MM VERT GOLD Headers & Wire Housings 2MM VERT REC 28CKT THRUHOLE SEL AU
0791077063
Molex
Conn Socket Strip RCP 28 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 28POS
0791081013
Molex
Conn FFC/FPC Connector SKT 28 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 28CKT
0791098413
Molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 28CKT
0791098663
Molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 28CKT
0791091263
Molex
Conn Socket Strip RCP 28 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 28CKT
51110-2851
Molex Connector Corporation
CONN HOUSING 2MM 28POS POLARIZED Housing 2.00mm Milli-Grid,28w Headers & Wire Housings 28CIR CRIMP HOUSING Conn Housing RCP 28 POS 2mm Crimp ST Cable Mount Bag Molex MILLI-GRID 系列 2 行 2mm 节距 28 路 直 母 电缆安装 压接连接器外壳
51110-2850
Molex Connector Corporation
CONN HOUSING 2MM 28POS 2.00mm Pitch, Milli-Grid™ Crimp Housing, 28 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free
