点击放大查看

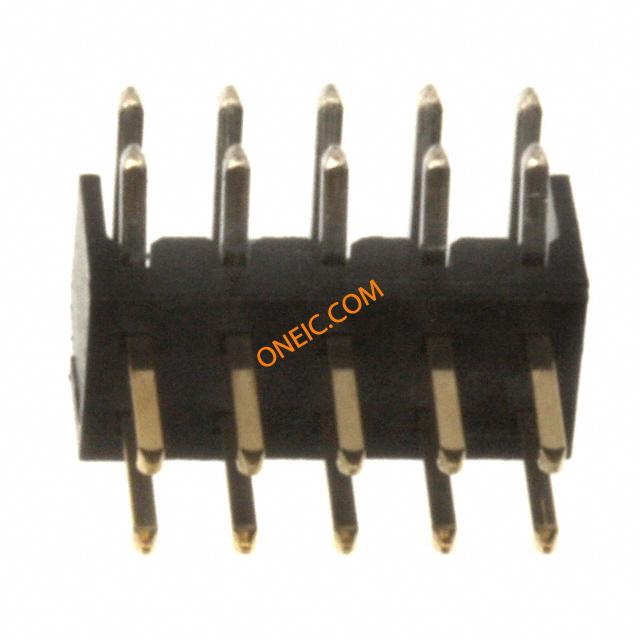

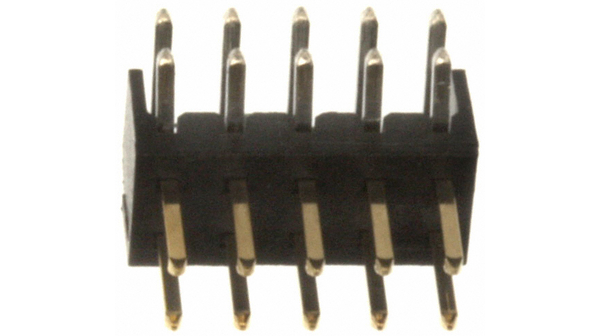

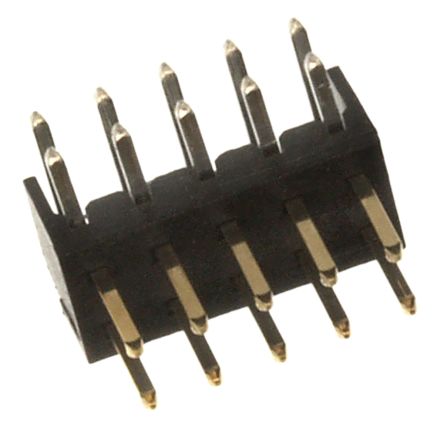

87760-1016
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 10POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 10 CKT. R/A Selective Gold Conn Unshrouded Header HDR 10 POS 2mm Solder RA Thru-Hole Tray Header, right angle Pitch2 mm Poles 10 Milli-Grid, 87760-1016, Molex Molex MILLI-GRID 系列 2mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877601016 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V | 极数 | 10 |
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 方向 | 直角 |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 引脚间距 | 0.079" (2.00mm) | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 板面高度 | 0.157" (4.00mm) |
| 触点数 | 10 | 位数 | 10 |
| 第一连接器极性 | Male | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | 每排/每行位置数 | All |
产品信息
| 类型 | Unshrouded | 系列 | 87760 |
| 覆盖范围 | 无覆盖 | 产品子类型 | Headers |
| 连接方式 | Wire-Board | 基础产品编号 | 87760 |
| 输出配置 | Through Hole, Right Angle | 加载位置数 | All |
环境参数
| 工作温度 | -55...+105 °C | ||
