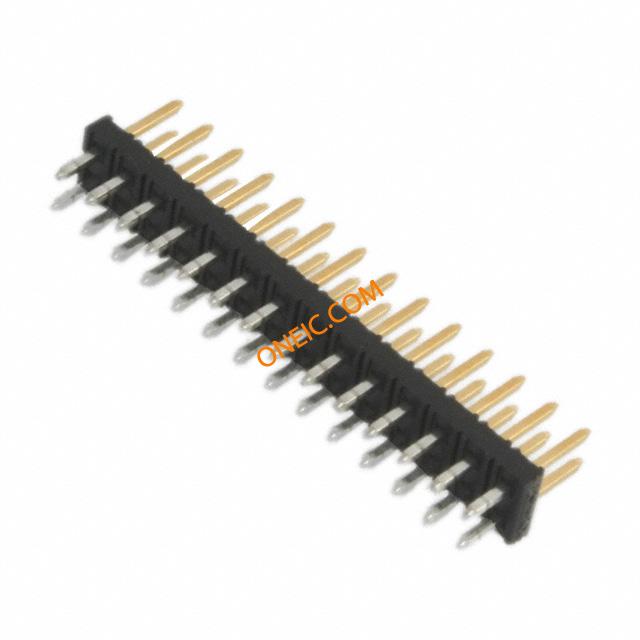

点击放大查看
87758-2816
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 28POS 2MM VERT GOLD Molex 87758 Series 2mm Pitch 28 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 2MM 28 CKT. HDR. Dual-Row Vertical Conn Unshrouded Header HDR 28 POS 2mm Solder ST Thru-Hole Tray Molex MILLI-GRID 系列 2mm节距 28路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877582816 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 28 |
| 位数 | 28 | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 系列 | 87758 |
| 覆盖范围 | 无覆盖 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 基础产品编号 | 87758 |
| 加载位置数 | All | ||
