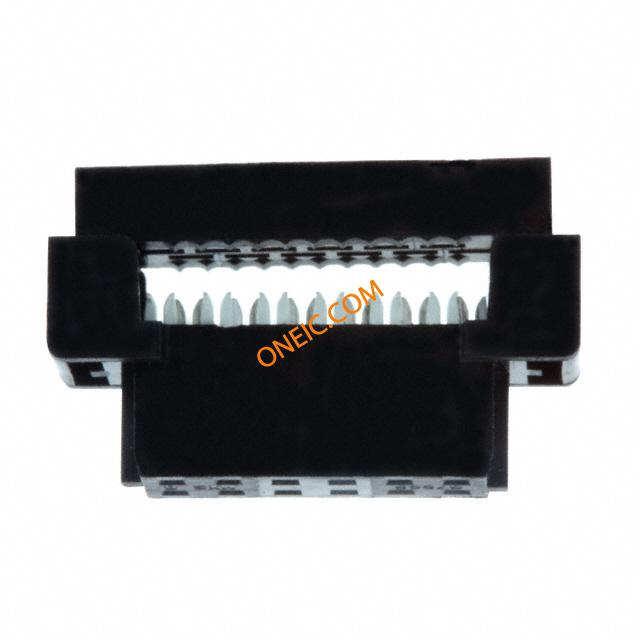

点击放大查看
87568-1263
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 12POS 2MM IDT GOLD Headers & Wire Housings MGRID 12CKT RECPT IDT W/O PKEY LRMP Conn IDC Connector RCP 12 POS 2mm IDT RA Cable Mount Tray |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0875681263 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2380 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Polyester | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 系列 | 87568 | 产品特性 | Feed Through |
| 产品子类型 | Receptacles / Sockets - Housings | ||
